P0202-Fuel Injector 2 Circuit: Notes

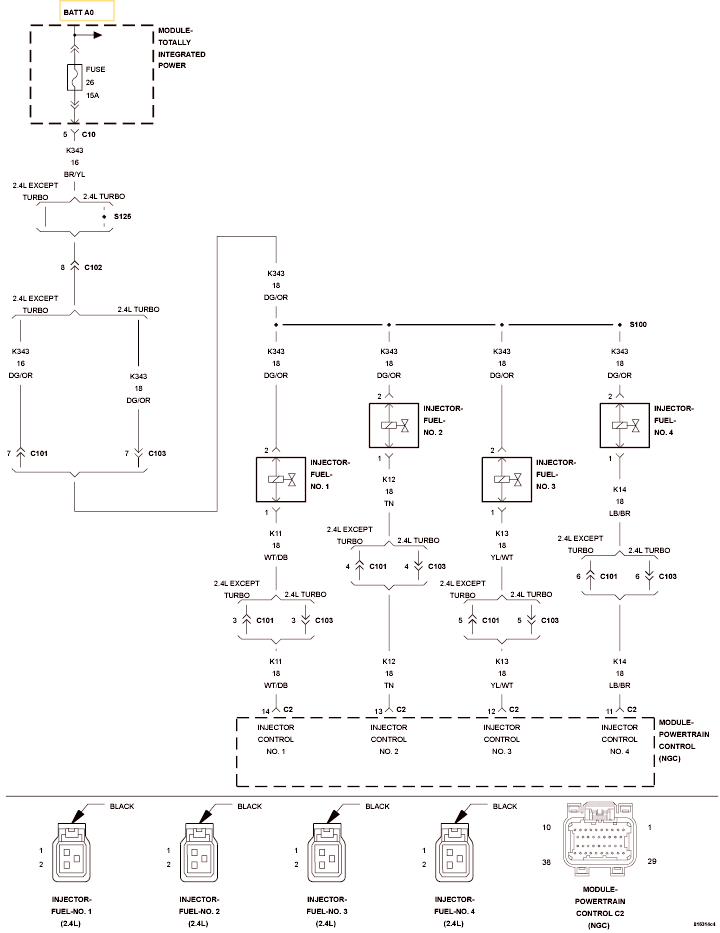

Fig 1: Fuel Injector Circuit

GC0117202

Courtesy of CHRYSLER LLC
