P0123-Throttle Position Sensor #1 High: Notes

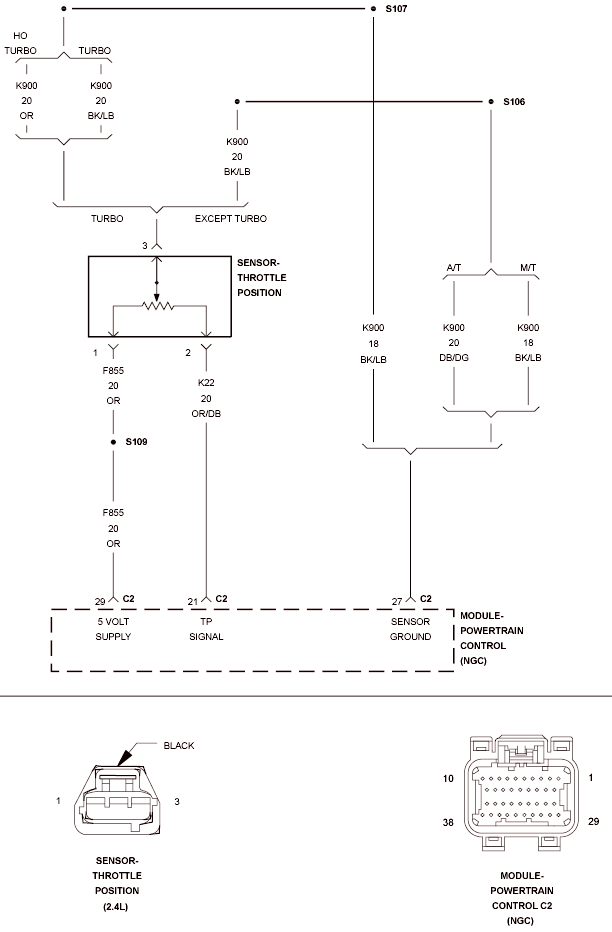

Fig 1: Throttle Position Sensor #1 Circuit

GC0117178

Courtesy of CHRYSLER LLC
