P0116-Engine Coolant Temperature Sensor Circuit Performance: Notes

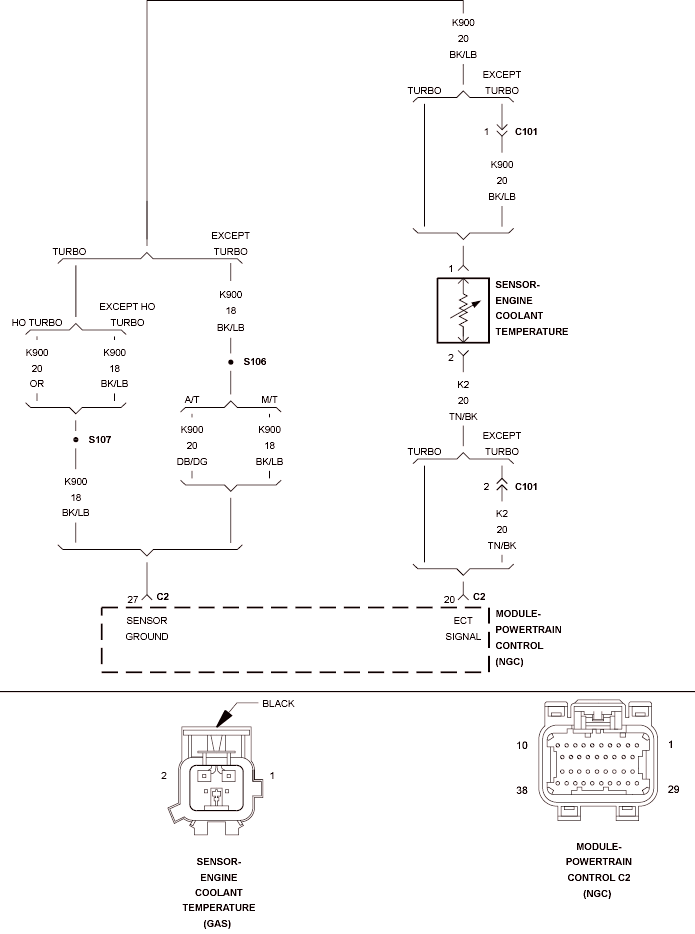

Fig 1: Engine Coolant Temperature Sensor Circuit

GC0117171

Courtesy of CHRYSLER LLC
