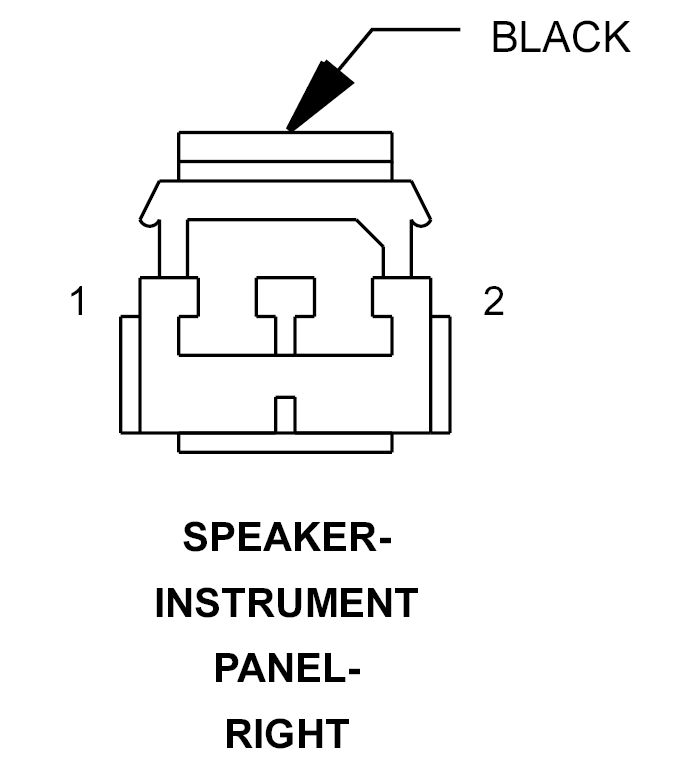

Right Instrument Panel Speaker Connector End View

SPEAKER-INSTRUMENT PANEL-RIGHT - BLACK 2-WAY

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	X202 18DG/VT	RIGHT FRONT SPEAKER (+) (BASE AUDIO)
1	X208 18GY/DG	RIGHT INSTRUMENT PANEL SPEAKER (+) (PREMIUM AUDIO)
2	X292 18DG/YL	RIGHT FRONT SPEAKER (-) (BASE AUDIO)
2	X298 18GY/LG	RIGHT INSTRUMENT PANEL SPEAKER (-) (PREMIUM AUDIO)
