Power Top Motor (Convertible) Connector End View
Power Top Motor (Convertible) Connector End View

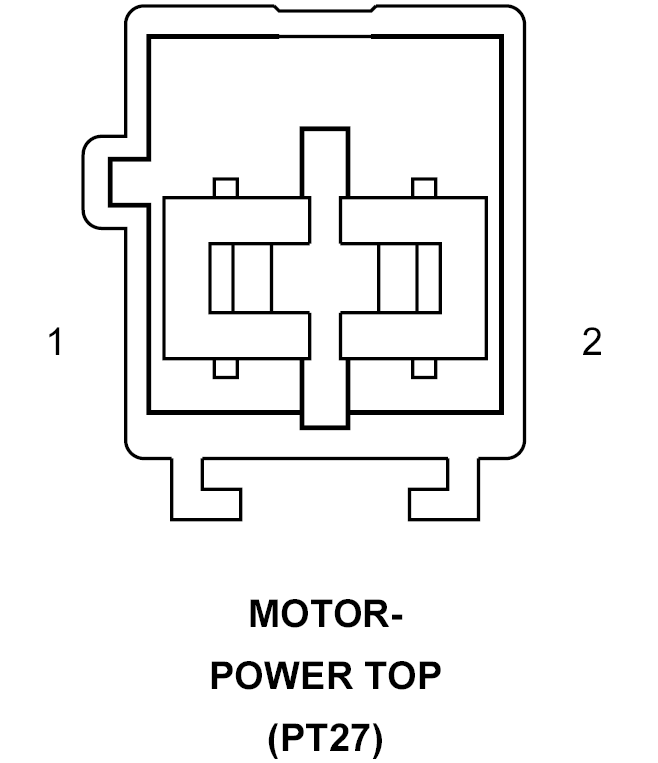

MOTOR-POWER TOP - 2-WAY (PT27)
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
P3 12YL
TOP UP RELAY OUTPUT
2
P4 12RD
TOP DOWN RELAY OUTPUT
Courtesy of CHRYSLER CORP.
