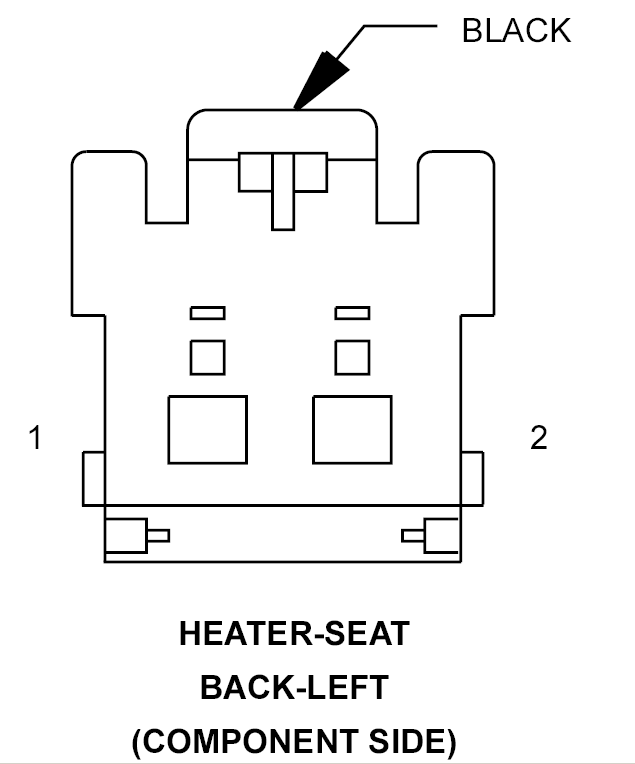

Left Seat Back Component Side Heater Connector End View

HEATER-SEAT BACK-LEFT - BLACK 2-WAY (COMPONENT SIDE)

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	Z908 18BK	GROUND
2	P187 18DG/RD	LEFT SEAT HEATER B(+) DRIVER
