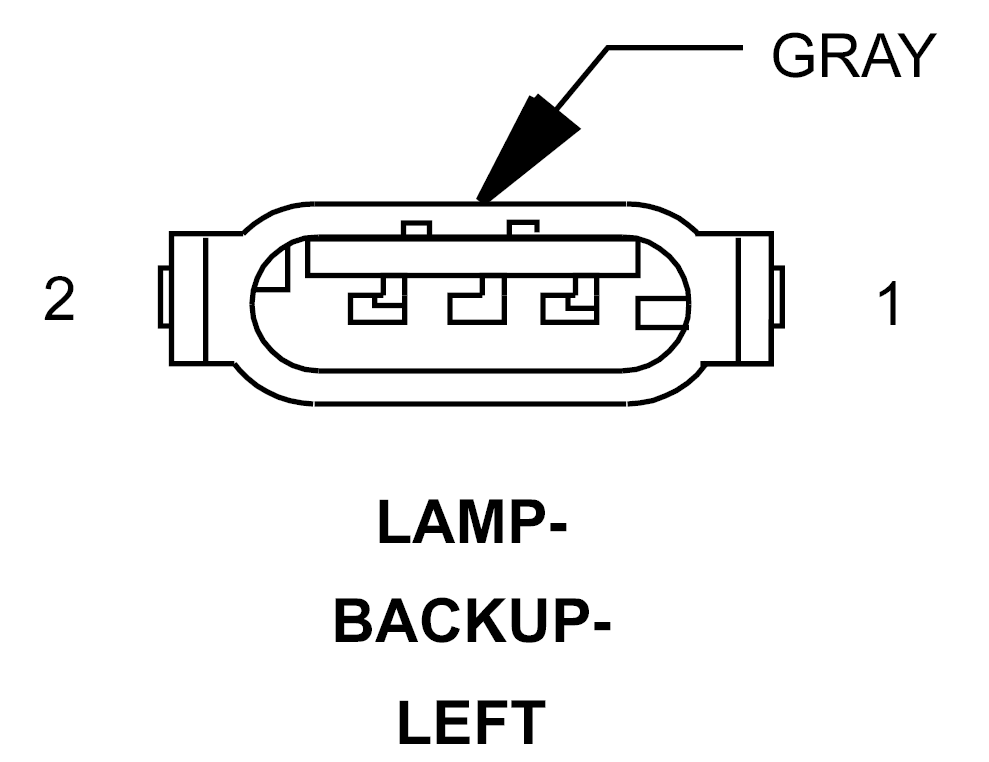

Left Backup Lamp Connector End View
Left Backup Lamp Connector End View
LAMP-BACKUP-LEFT - GRAY 2-WAY
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
L1 20VT/BK
BACKUP LAMP SWITCH OUTPUT
2
Z908 20BK
GROUND
Courtesy of CHRYSLER CORP.
