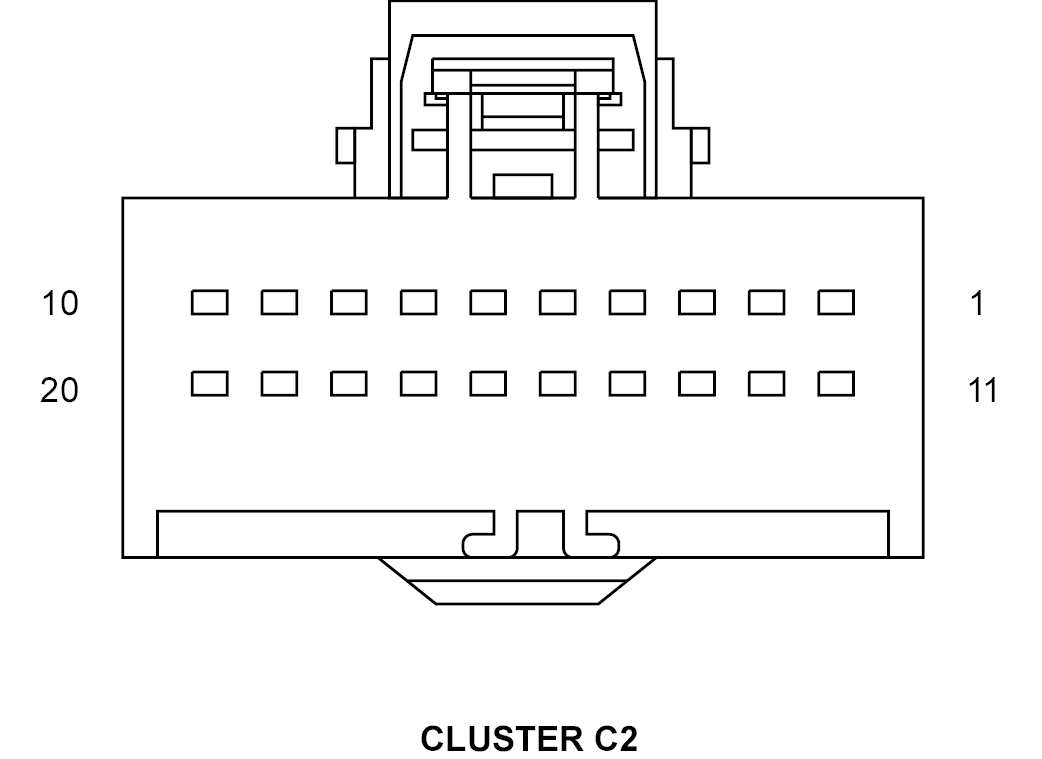

Instrument Cluster Connector End View (C2)
CLUSTER C2 - 20-WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | M25 20OR/LG | COURTESY LAMPS DRIVER (PT27) |
| 2 | M27 20YL/LB | READING/RAIL LAMPS DRIVER |
| 3 | G75 20VT | LEFT FRONT DOOR AJAR SWITCH SENSE |
| 4 | M24 20YL/WT | COURTESY LAMPS DRIVER |
| 5 | G77 22VT/GY | LEFT REAR DOOR AJAR SWITCH SENSE (PT44) |
| 6 | G76 22VT/YL | RIGHT REAR DOOR AJAR SWITCH SENSE (PT44) |
| 7 | B25 20WT/BK | PARK BRAKE SWITCH SENSE |
| 8 | L53 18DG/WT | PRIMARY BRAKE SWITCH SIGNAL (1.6L/DIESEL) |
| 8 | L53 18DG/WT | BRAKE LAMP SWITCH OUTPUT (2.4L) |
| 9 | A412 20RD | FUSED B(+) (I.O.D.) |
| 10 | Z906 20BK | GROUND |
| 11 | G74 20VT/WT | RIGHT FRONT DOOR AJAR SWITCH SENSE |
| 12 | R57 20LG/GY | DRIVER SEAT BELT SWITCH SENSE |
| 13 | G78 22VT/OR | DECKLID/LIFTGATE AJAR SWITCH SENSE |
| 14 | G38 20GY | UGDO ENABLE CONTROL CIRCUIT |
| 15 | - | - |
| 16 | N4 20DB/WT | FUEL LEVEL SENSOR SIGNAL |
| 17 | P696 20LG/WT | RIGHT DOOR LOCK SWITCH MUX |
| 18 | P697 20LG/DG | LEFT DOOR LOCK SWITCH MUX |
| 19 | G20 20VT/BR | IGNITION SWITCH SENSE |
| 20 | G900 20VT/OR | IGNITION SWITCH SENSE RETURN |
