Inline Connector End View (C308 )

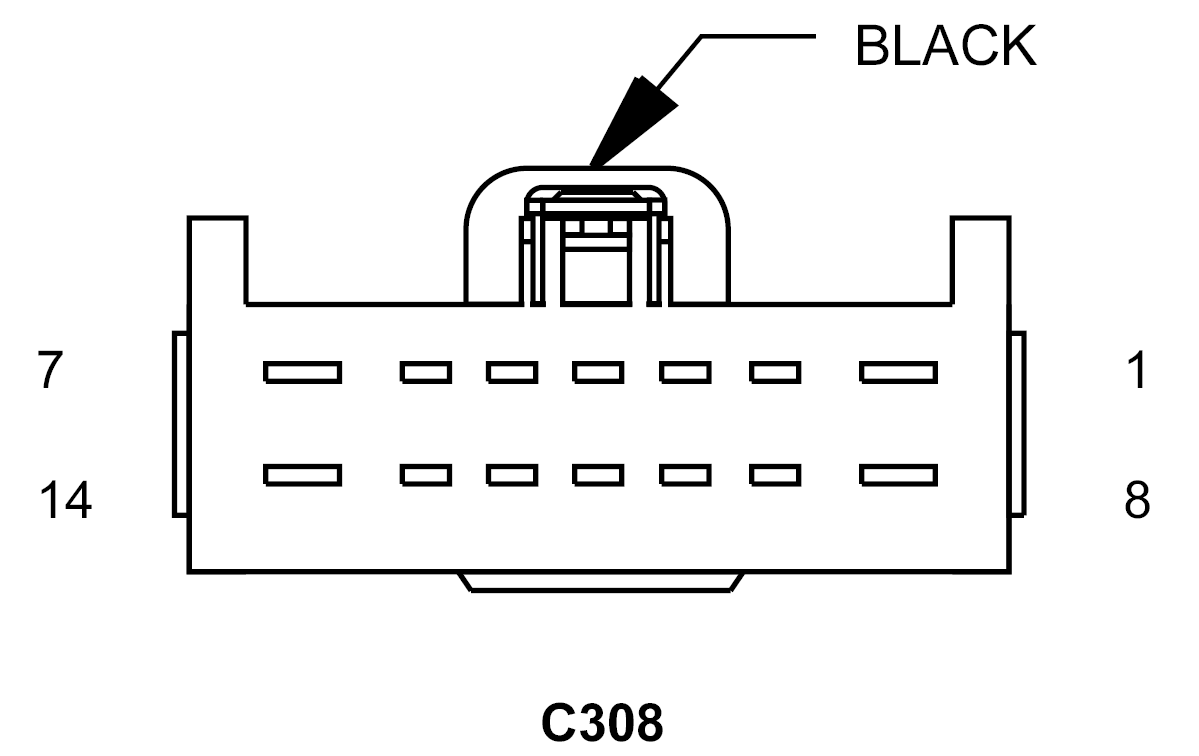

C308 - BLACK 14-WAY FEMALE

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	Z908 12BK	GROUND
2	-	-
3	-	-
4	-	-
5	-	-
6	R261 20LB/WT	DRIVER SEAT POSITION SENSOR DATA
7	-	-
8	-	-
9	-	-
10	-	-
11	R263 20LB/VT	DRIVER SEAT POSITION SENSOR VOLTAGE
12	P187 18LG/BR	LEFT SEAT HEATER B(+) DRIVER (HEATED SEATS LHD)
12	P188 18LG/BR	RIGHT SEAT HEATER B(+) DRIVER (HEATED SEATS RHD)
13	-	-
14	A929 14RD/DB	FUSED RUN/ACCESSORY CONTROL OUTPUT

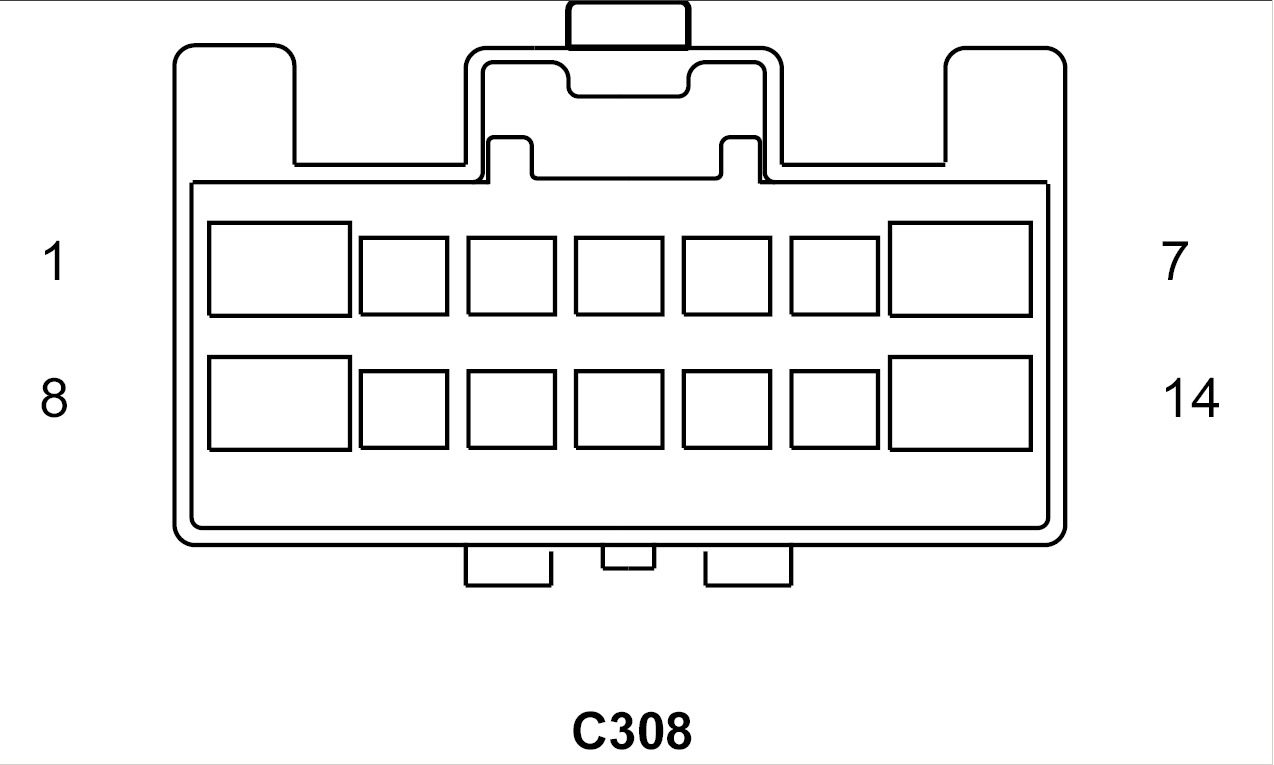

C308 - 14-WAY MALE

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	Z908 12BK	GROUND
2	-	-
3	-	-
4	-	-
5	-	-
6	R261 20LB/WT	DRIVER SEAT POSITION SENSOR DATA
7	-	-
8	-	-
9	-	-
10	-	-
11	R263 20LB/VT	DRIVER SEAT POSITION SENSOR VOLTAGE
12	P187 18LG/BR	LEFT SEAT HEATER B(+) DRIVER (HEATED SEATS LHD)
12	P188 18LG/BR	RIGHT SEAT HEATER B(+) DRIVER (HEATED SEATS RHD)
13	-	-
14	A929 14RD	FUSED RUN/ACCESSORY CONTROL OUTPUT
