Inline Connector End View (C307 )

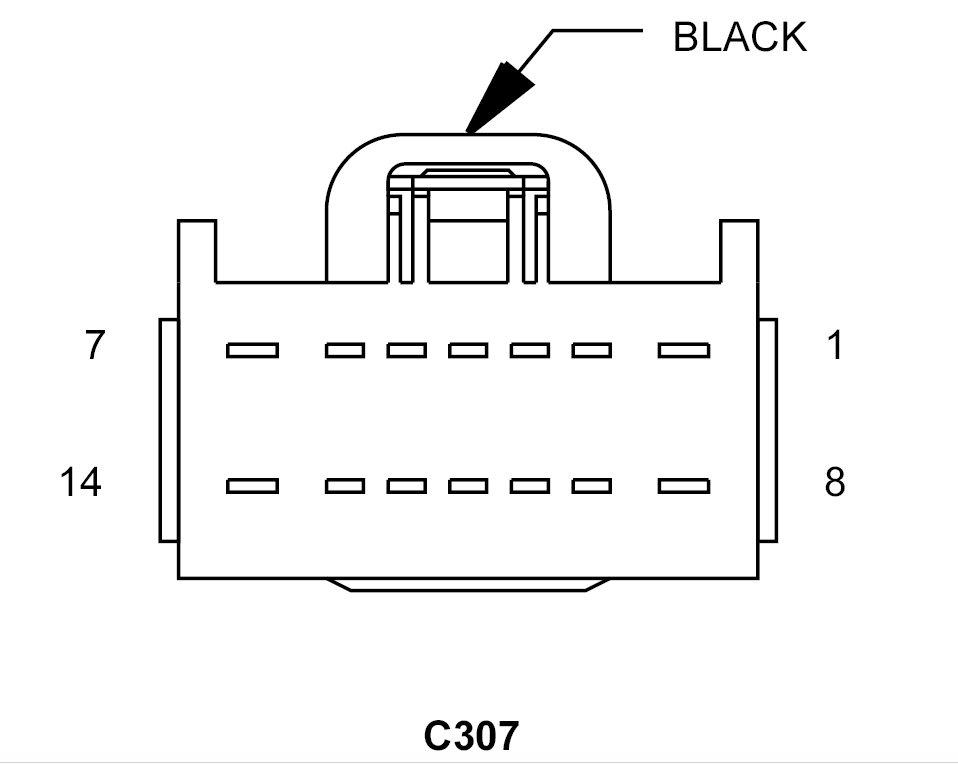

C307 - BLACK 14-WAY FEMALE

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	Z908 12BK	GROUND
2	-	-
3	R261 20LB/WT	DRIVER SEAT POSITION SENSOR DATA
4	R272 20LB/BK	PASSENGER HALL EFFECT (-)
5	R263 20LB/VT	DRIVER SEAT POSITION SENSOR VOLTAGE
6	R274 20LB/GY	PASSENGER HALL EFFECT (+)
7	F937 16PK/BK	FUSED IGNITION SWITCH OUTPUT (RUN)
8	A952 16RD	FUSED B(+)
9	D55 20WT/RD	CAN B BUS (+)
9	D55 20WT/RD	CAN B BUS (+) (SATELLITE RADIO)
10	D54 20WT	CAN B BUS (-)
10	D54 20WT	CAN B BUS (-) (SATELLITE RADIO)
11	D506 20WT/GY	LIN BUS
12	P187 18LG/BR	LEFT SEAT HEATER B(+) DRIVER (HEATED SEATS LHD)
12	P188 18LG/BR	RIGHT SEAT HEATER B(+) DRIVER (HEATED SEATS RHD)
13	-	-
14	-	-

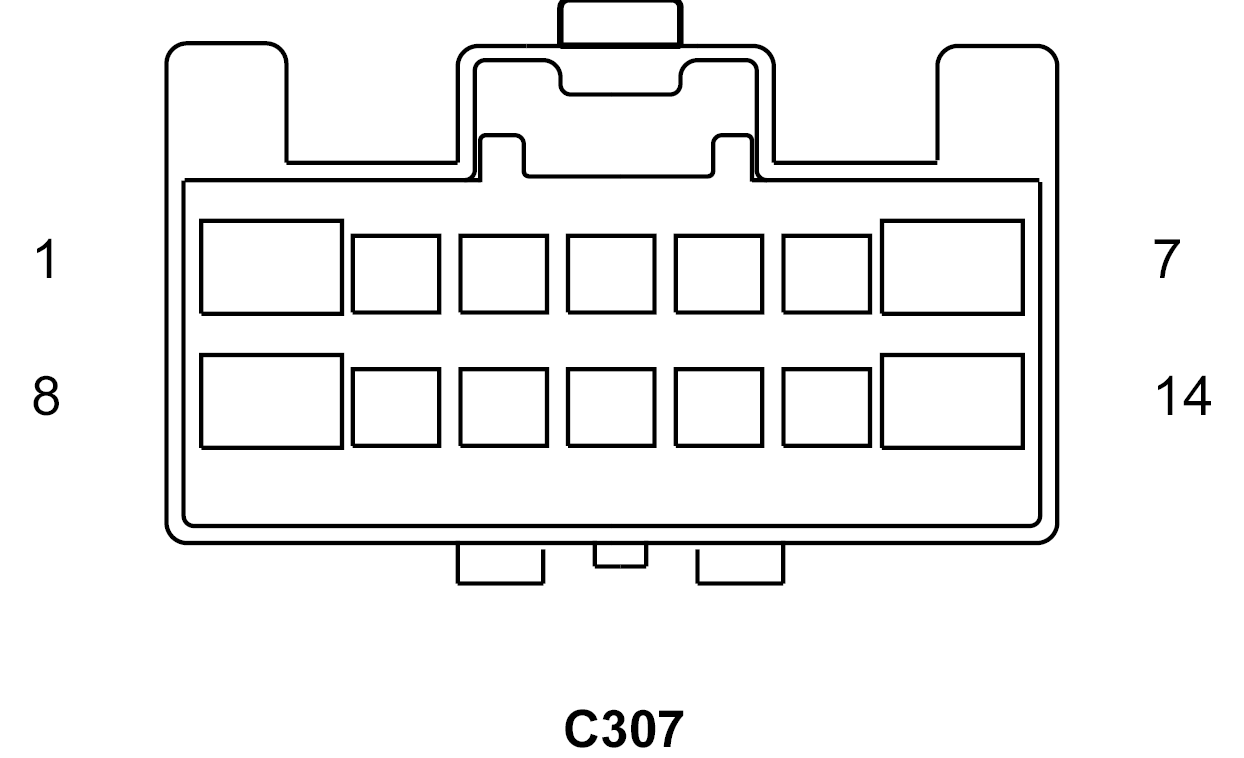

C307 - 14-WAY MALE

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	Z908 14BK	GROUND (EXCEPT HEATED SEATS)
1	Z908 18BK	GROUND (HEATED SEATS)
2	-	-
3	R261 20LB/WT	DRIVER SEAT POSITION SENSOR DATA
4	R272 20VT	PASSENGER HALL EFFECT (-)
5	R263 20LB/VT	DRIVER SEAT POSITION SENSOR VOLTAGE
6	R274 20LB	PASSENGER HALL EFFECT (+)
7	F937 16PK/YL	FUSED IGNITION SWITCH OUTPUT (RUN) (HEATED SEATS)
8	A952 20RD	FUSED B(+)
9	D55 20WT/OR	CAN B BUS (+)
10	D54 20WT	CAN B BUS (-)
11	D506 20WT/DG	LIN BUS (HEATED SEATS)
12	P187 18LG/BR	LEFT SEAT HEATER B(+) DRIVER (HEATED SEATS LHD)
12	P188 18LG/BR	RIGHT SEAT HEATER B(+) DRIVER (HEATED SEATS RHD)
13	-	-
14	-	-
