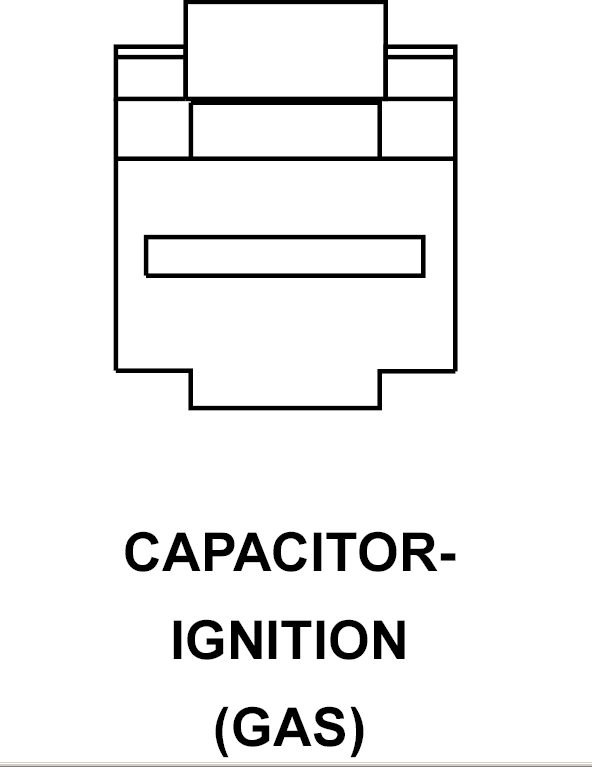

Ignition Capacitor (Gas) Connector End View

CAPACITOR-IGNITION - 1-WAY (GAS)

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	K344 18DG/OR	FUSED ASD RELAY OUTPUT (1.6L/2.4L TURBO)
1	K344 16DG/OR	FUSED ASD RELAY OUTPUT (2.4L EXCEPT TURBO)
