Glow Plug 1 (Diesel) Connector End View
Glow Plug 1 (Diesel) Connector End View

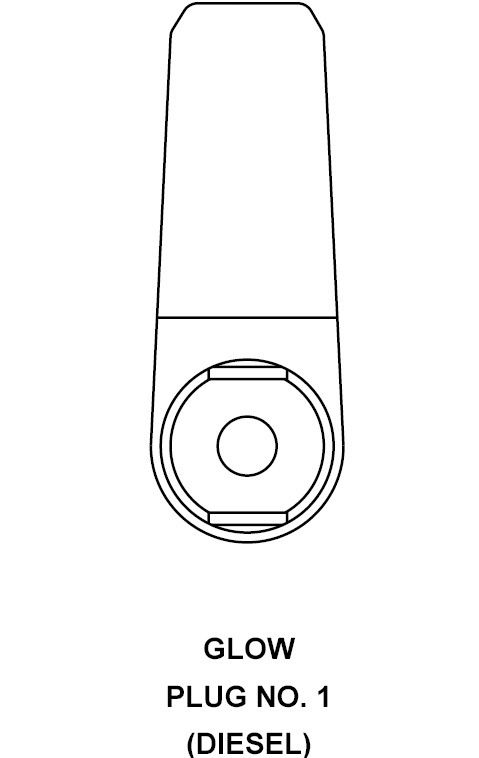

GLOW PLUG NO. 1 - 1-WAY (DIESEL)
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
A202 14BK/LB
GLOW PLUG NO. 1 CONTROL
