Chrysler
>>
2009
>>
PT Cruiser Base, Standard
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
Connector End Views
>>
Connector Pin-Outs
>>
Fuel Injector 4 (1.6L) Connector End View
Fuel Injector 4 (1.6L) Connector End View

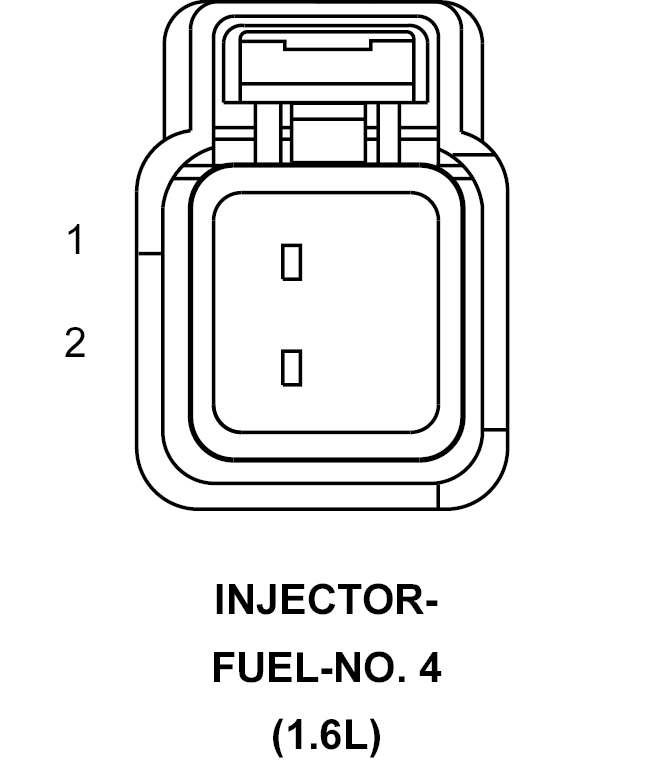

INJECTOR-FUEL-NO. 4 - 2-WAY (1.6L)
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
K14 18LB/BR
INJECTOR CONTROL NO. 4
2
K343 18DG/OR
FUSED ASD RELAY OUTPUT
Courtesy of CHRYSLER CORP.
