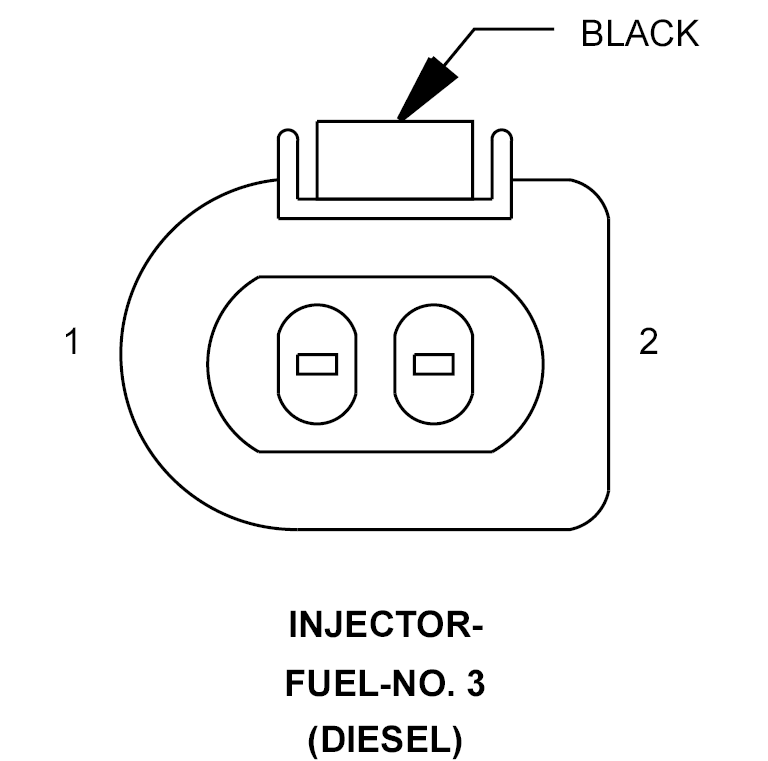

Fuel Injector 3 (Diesel) Connector End View

INJECTOR-FUEL-NO.3 - BLACK 2-WAY (DIESEL)

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	K13 16BK/LG	FUEL INJECTOR NO. 3 LOW-SIDE CONTROL
2	K613 16LG	FUEL INJECTOR NO. 3 HIGH-SIDE CONTROL
