Fuel Injector 2 (2.4L) Connector End View

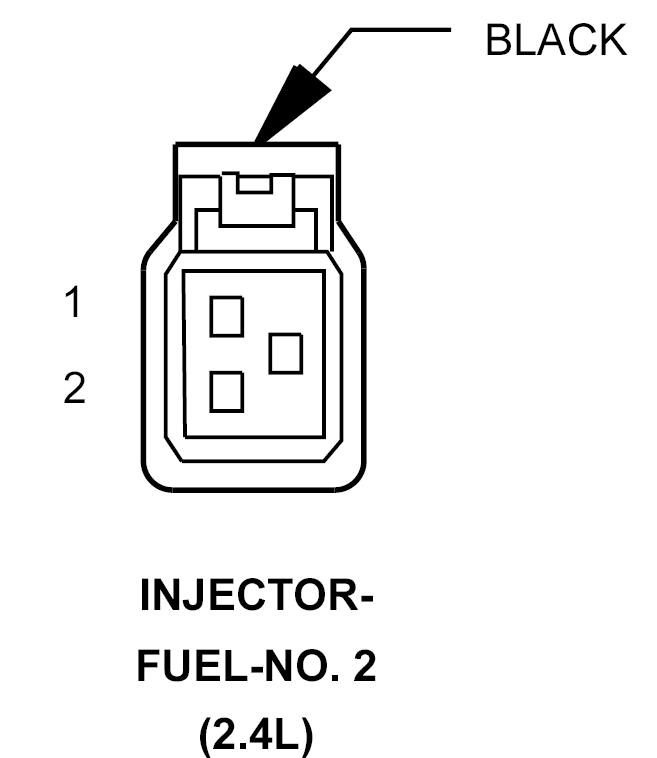

INJECTOR-FUEL-NO. 2 - BLACK 2-WAY (2.4L)

GPT780142Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 K12 18TN INJECTOR CONTROL NO. 2
2 K343 18DG/OR FUSED ASD RELAY OUTPUT
