Fuel Injector 1 (2.4L) Connector End View
Fuel Injector 1 (2.4L) Connector End View

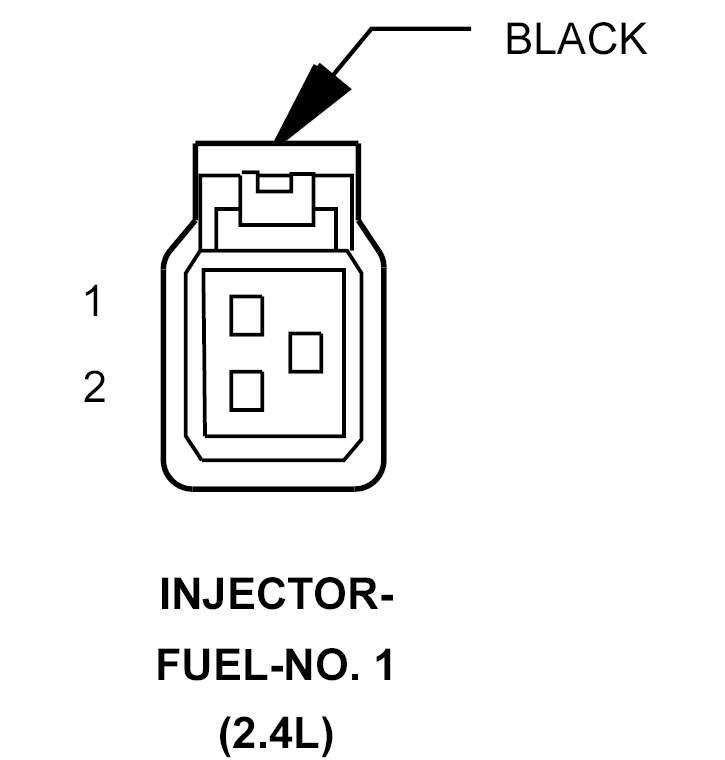

INJECTOR-FUEL-NO. 1 - BLACK 2-WAY (2.4L)
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
K11 18WT/DB
INJECTOR CONTROL NO. 1
2
K343 18DG/OR
FUSED ASD RELAY OUTPUT
Courtesy of CHRYSLER CORP.
