Dome Lamp (Hatchback) Connector End View
Dome Lamp (Hatchback) Connector End View

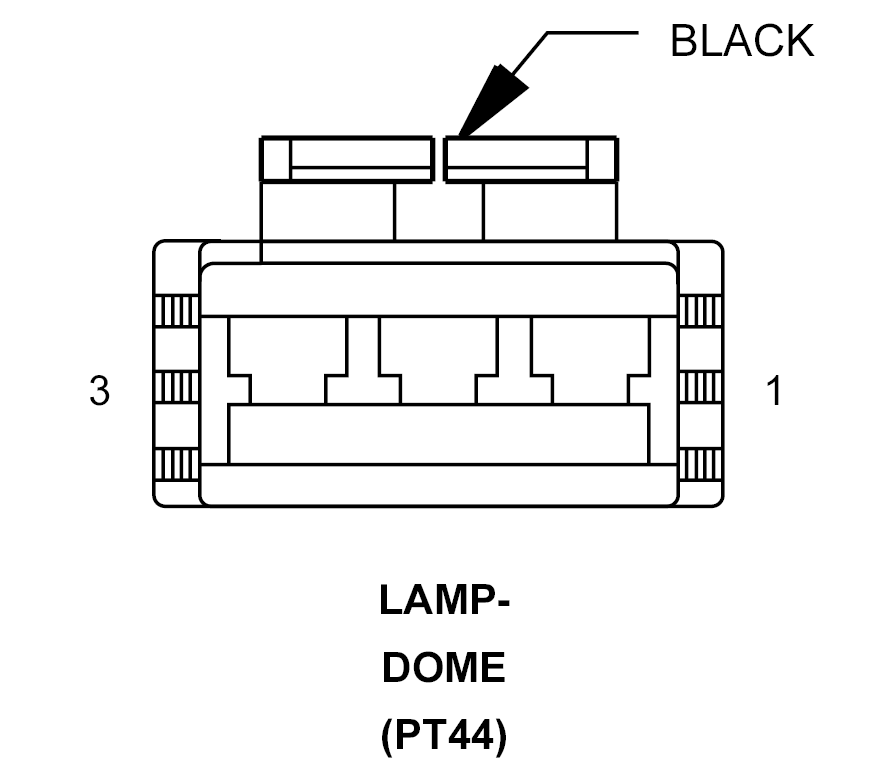

LAMP-DOME - BLACK 3-WAY (PT44)
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
-
-
2
M24 20YL/WT
COURTESY LAMPS DRIVER
3
Z906 20BK
GROUND
Courtesy of CHRYSLER CORP.
