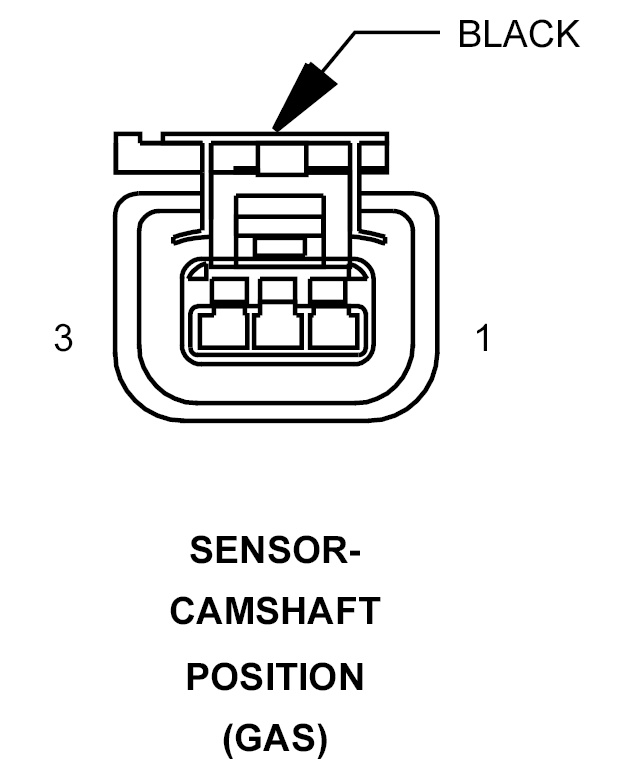

Camshaft Position Sensor (Gas) Connector End View
SENSOR-CAMSHAFT POSITION - BLACK 3-WAY (GAS)
| CAV | CIRCUIT | FUNCTION |
| 1 | K844 20GY/PK | CMP 5 VOLT SUPPLY (1.6L) |
| 1 | F855 20OR | 5 VOLT SUPPLY (EXCEPT 1.6L) |
| 2 | K44 20TN/YL | CMP SIGNAL (1.6L) |
| 2 | K900 20BK/LB | SENSOR GROUND (2.4L EXCEPT HO TURBO) |
| 2 | K900 20OR | SENSOR GROUND (2.4L HO TURBO) |
| 3 | K944 20BR/GY | CMP GROUND (1.6L) |
| 3 | K44 20TN/YL | CMP SIGNAL (EXCEPT 1.6L) |
