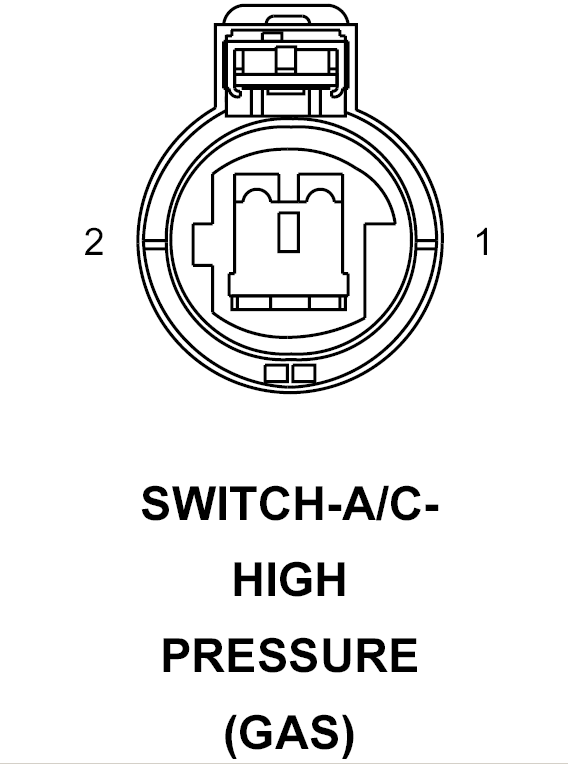

A/C High Pressure Switch (Gas) Connector End View
SWITCH-A/C-HIGH PRESSURE - 2-WAY (GAS)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
C221 18BR/WT |
A/C HIGH PRESSURE SIGNAL (1.6L) |
| 1 |
C221 20BR/WT |
A/C HIGH PRESSURE SIGNAL (EXCEPT 1.6L) |
| 2 |
C21 20DB/OR |
A/C LOW PRESSURE SIGNAL (1.6L) |
| 2 |
C21 20DB/WT |
A/C LOW PRESSURE SIGNAL (EXCEPT 1.6L) |
