SWITCH, Power Window: Removal: Removal: Front

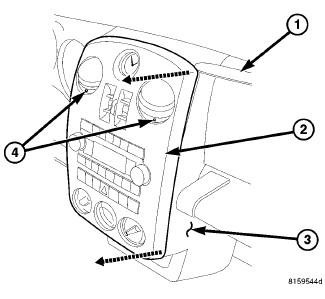

Fig 1: Removing/Installing Front Power Window Switch

Courtesy of CHRYSLER LLC

1. Disconnect and isolate the battery negative cable.
2. Remove bezel. Refer to Body/Instrument Panel/BEZEL, Instrument Panel - Removal .
3. Disconnect electrical harness connector.
4. Using a trim stick (1) (special tool #C-4755) or equivalent, gently pry switch from the bezel.
