C1002-Brake Switch Stuck High: Notes

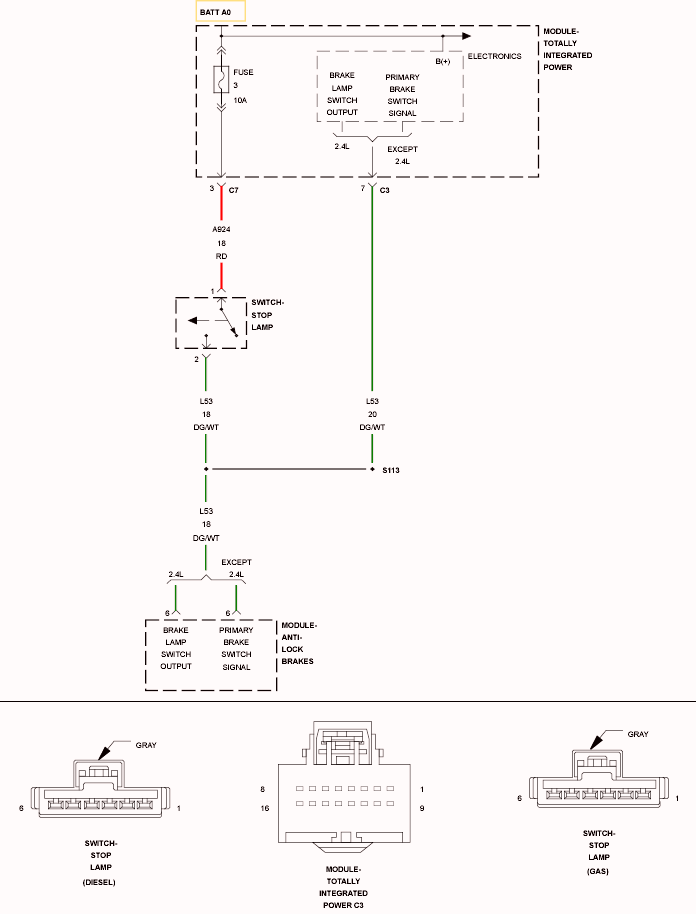

Fig 1: Brake Switch Stuck Circuit
GC0117491Courtesy of CHRYSLER LLC
