B2106-Ignition Run/Start Control Circuit Open: Notes

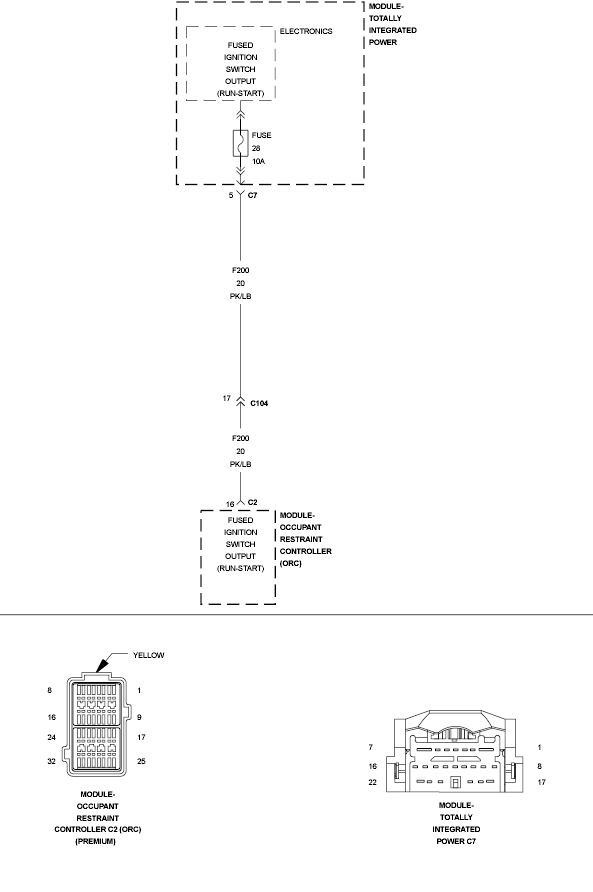

Fig 1: Ignition Run/Start Control Circuit

GC0117451

Courtesy of CHRYSLER LLC
