B10EC-Blower Motor Control Circuit OVERCURRENT: Notes

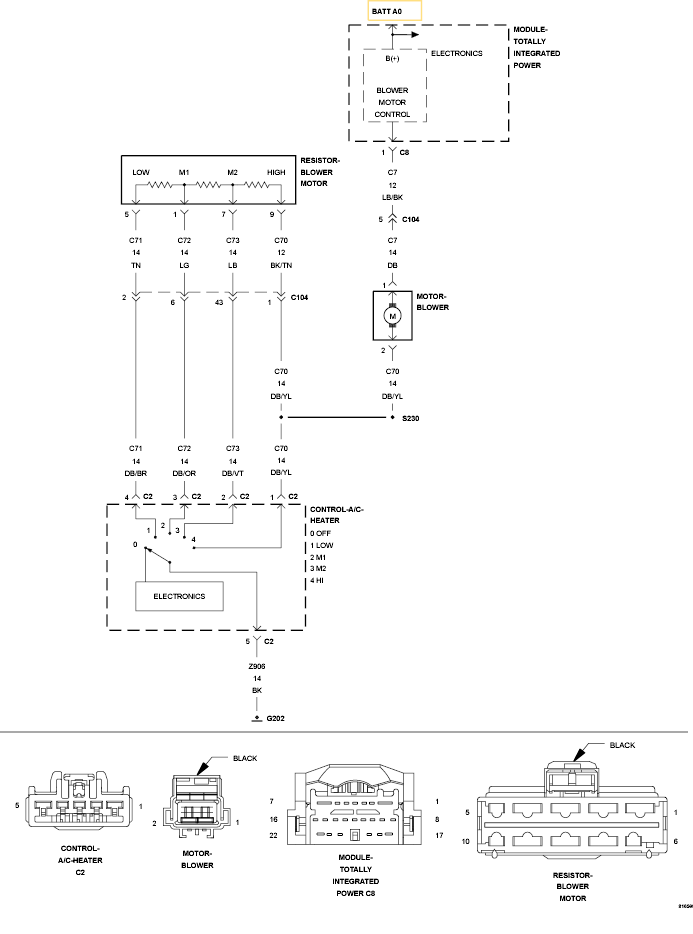

Fig 1: Blower Motor Control Circuit

GC0117437

Courtesy of CHRYSLER LLC
