AIR BAG, Seat: Removal: Removal

Position the front seat to its most forward position for easiest access to the front seat mounting hardware.
Disconnect and isolate the battery negative cable. Wait two minutes for the system capacitor to discharge before further service.
Remove the front seat from the vehicle. Refer to Body/Seats/SEAT - Removal .
Remove the trim from the seat back.

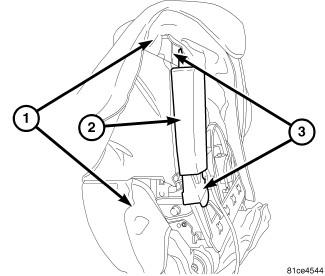

Fig 1: Seat Airbag And Trim Cover
Courtesy of CHRYSLER LLC
Pull back the foam (1) from the top and bottom of the air bag trim cover (2) and remove the two fasteners (3) securing the cover to the seat frame.

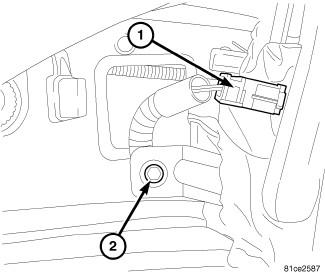

Fig 2: Seat Wire Harness
Courtesy of CHRYSLER LLC
Disconnect the seat wire harness connector (1) from the seat airbag inflator.
Remove the one air bag retaining (2) screw from the inboard side of the seat back frame.

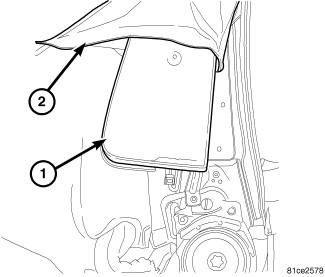

Fig 3: Seat Airbag
Courtesy of CHRYSLER LLC
Slide the air bag (1) from the bottom of its protective cover.
