ADJUSTER, Seat Belt Turning Loop, Front: Installation: Installation

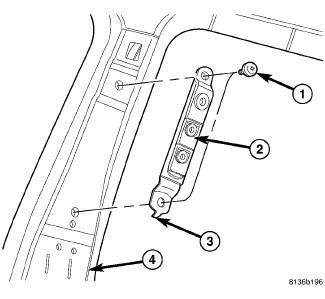

Fig 1: Seat Belt Height Adjuster

Courtesy of CHRYSLER LLC

1. Position height adjuster making sure that indexing tab is in the proper hole.
2. Install the two mounting bolts (1). Torque bolts to 32 N.m (24 ft. lbs.).
   Fig 2: Removing/Installing Upper B-Pillar Trim

   Courtesy of CHRYSLER LLC
3. Install the upper B-pillar trim. Refer to Body/Interior/PANEL, B-Pillar Trim - Installation .

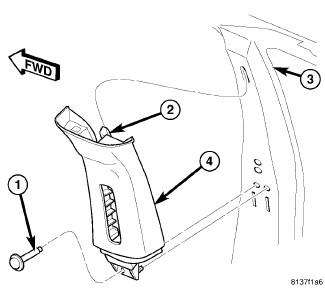

   Fig 3: Upper Turning Loop Trim Cover

   Courtesy of CHRYSLER LLC
4. Position the upper turning loop (3) and install the retaining bolt (4). Torque bolt to 40 N.m (30 ft. lbs.).
5. Install the upper turning loop (3) trim cover (2).
