Diagnostic Test

DTC IS ACTIVE
1. Ignition on, engine not running.
2. With the scan tool, select Clear Stored DTCs in the Memory Seat Module.
3. Move the Steering Column Telescope Switch to the Forward and Rearward positions several times, holding the switch in position for at least two seconds each time.
4. With the scan tool, select View DTCs in the Memory Seat Module.
  Does the DTC reset and/or remain active?

  Yes
  - Go to Step 2.
  No
  - Go to Step 4.
CHECK DTC WITH HARNESS DISCONNECTED
1. Turn the ignition off.
2. Disconnect the Steering Column Telescope Motor connector.
3. Turn the ignition on.
4. Move the Steering Column Telescope Switch to the Forward and Rearward positions several times.
5. With the scan tool, select Clear Stored DTCs in the Memory Seat Module.
6. Move the Steering Column Telescope Switch to the Forward and Rearward positions several times, holding the switch in position for at least two seconds each time.
7. With the Scan Tool, select View DTCs in the Memory Seat Module.
  Does the DTC reset and/or remain active?

  Yes
  - Go to Step 3.
  No
  - Inspect the wiring between the Steering Column Telescope Motor and the harness connector (on the motor side) for a short to ground or to any other circuit. If any problems are found, repair as necessary. If no problems are found, replace the Steering Column Telescope Motor in accordance with the Service Information.
  - Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure .
(P152) TELESCOPE STEERING FORWARD/REARWARD POSITION SENSE CIRCUIT SHORTED TO GROUND

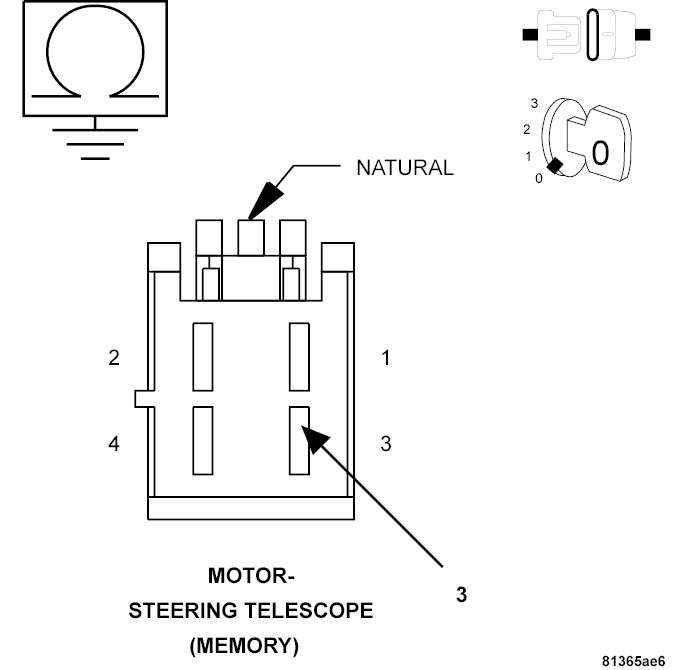

Fig 1: Measuring Resistance Between Gnd & Telescope Steering Forward/Rearward Pos Sense Circuit At Steering Column Telescope Motor Connector
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the Memory Seat Module (MSM) C1 connector.
3. Measure the resistance between ground and the (P152) Telescope Steering Forward/Rearward Position Sense circuit at the Steering Column Telescope Motor connector (harness side).
  Is the resistance below 5.0 Ohms?

  Yes
  - Repair the (P152) Telescope Steering Forward/Rearward Position Sense circuit for a short to ground.
  - Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure .
  No
  - Inspect the wiring between the Memory Seat Module harness connector and the Steering Column Telescope Motor harness connector for a short to ground or to any other circuit. If any problems are found, repair as necessary. If no problems are found, replace the Memory Seat Module (MSM) in accordance with the Service Information.
  - Perform the POWER SEAT SYSTEM VERIFICATION TEST. See POWER SEAT SYSTEM VERIFICATION TEST .
INTERMITTENT STEERING COLUMN TELESCOPE POSITION SENSOR CIRCUIT LOW DTC
1. The conditions necessary to set this DTC are not present at this time.
2. While monitoring the scan tool data relative to this circuit, wiggle test the component and connectors and move the switch to each position.
3. Look for the data to change other than as expected or for the DTC to reset during the wiggle test.
  Were any problems found?

  Yes
  - Repair as necessary.
  - Perform the POWER SEAT SYSTEM VERIFICATION TEST. See POWER SEAT SYSTEM VERIFICATION TEST .
  No
  - Test complete.
