2.7L/3.5L Engine

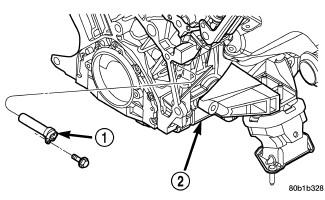

Fig 1: Engine Block Heater 2.7L/3.5L
GC0095206Courtesy of CHRYSLER LLC
1 - BLOCK HEATER
2 - ENGINE - RIGHT SIDE
  1. Raise vehicle on hoist.
  2. Detach power cord plug from block heater (1).
  3. Remove block heater attaching screw located below heater terminals.
  4. Remove block heater from cylinder block (2).
