COIL, Ignition: Installation: 3.5L

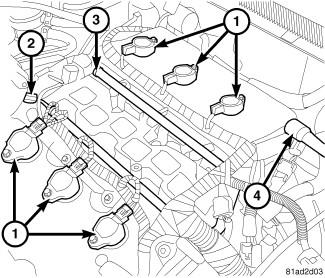

Fig 1: IGNITION COILS AND FUEL RAIL - 3.5L

Courtesy of CHRYSLER LLC

Install ignition coil (1).

Fig 2: IGNITION COILS AND ENGINE COVER STUDS
Courtesy of CHRYSLER LLC
Install engine cover studs (1) in the two outside ignition coils on the front of the engine. Install bolts on the other ignition coils.
Tighten studs and bolts to 8 N.m (71 in. lbs.).

Fig 3: COILS AND ELECTRICAL CONNECTORS
Courtesy of CHRYSLER LLC
Connect electrical connector and lock (2).
Install intake manifold. Refer to INSTALLATION .
Connect negative battery cable and tighten nut to 5 N.m (45 in. lbs.).
Install engine cover.
