Node-Wireless Ignition: Removal: Removal

WARNING: This page is about a different car, the 2008 Dodge Magnum, 2008 Dodge Charger, and 2008 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

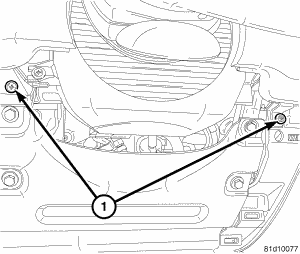

Fig 1: Lower Instrument Cluster Trim Screws
GC0070152Courtesy of CHRYSLER LLC
  1. Disconnect the battery negative cable.
  2. Remove the lower steering column trim cover and steering column cover reinforcement. Refer to REMOVAL .
  3. Remove the two screws (1) from the lower instrument cluster trim.

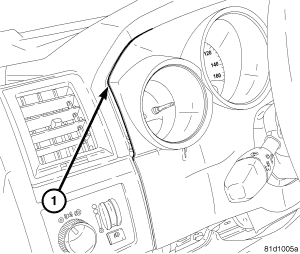

    Fig 2: Edge Of The Trim
    GC0070153Courtesy of CHRYSLER LLC
  4. Using a trim stick or equivalent, gently pry (1) along the edge of the trim to remove the instrument cluster trim.

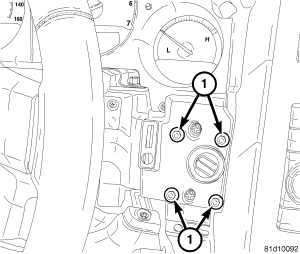

    Fig 3: Wireless Ignition Node Screws
    GC0070154Courtesy of CHRYSLER LLC
  5. Remove the 4 screws from the WIN (1).

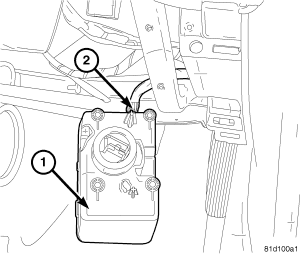

    Fig 4: Wireless Ignition Node
    GC0070155Courtesy of CHRYSLER LLC
  6. Remove the WIN (1) from the rear if the instrument panel bringing it through the opening below the steering column and disconnect the electrical connector (2) from the WIN.
