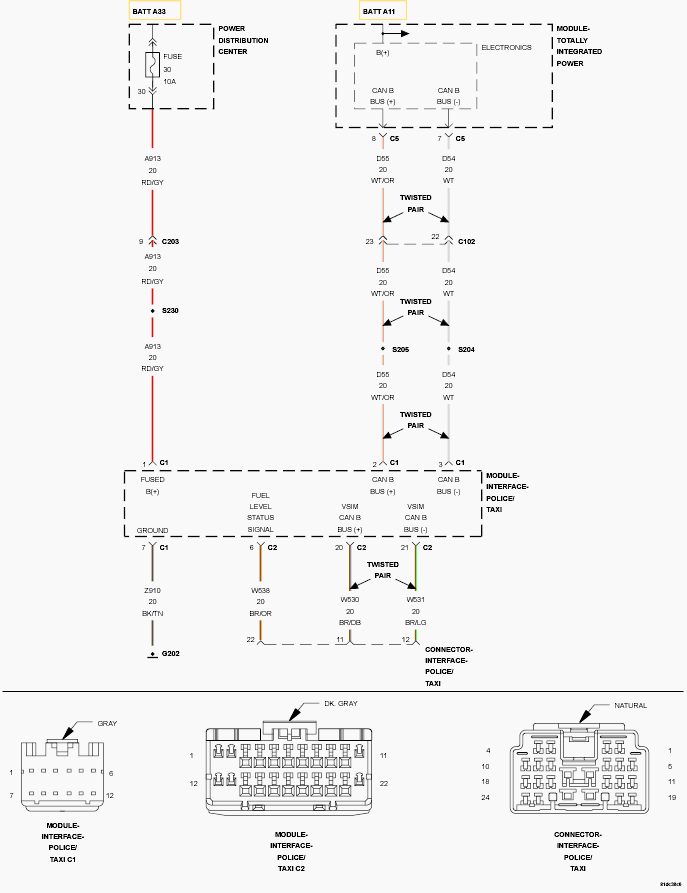

Home >> Chrysler >> 2009 >> 300 C, AWD >> Repair and Diagnosis >> Engine Performance >> System >> (Police & Taxi Interface Module (PTIM) - Electrical Diagnostics) >> DTC Troubleshooting >> P1463-Fuel Level Output Circuit High >> Circuit Schematic
