VALVE, Manifold Tuning: Installation: 3.5L

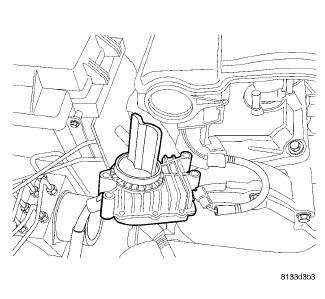

Fig 1: Removing/Installing Manifold Tuning Valve
GC0080485Courtesy of CHRYSLER LLC
  1. Install the Manifold Tuning Valve.
  2. Install the 2 mounting bolts.
  3. Tighten bolts to 2.8 N.m (25 in. lbs.).

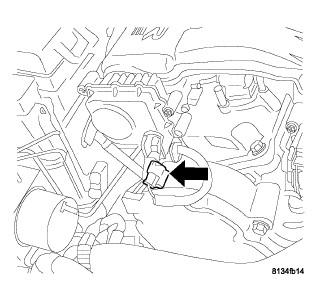

    Fig 2: Manifold Tuning Valve Electrical Connector
    GC0080484Courtesy of CHRYSLER LLC
  4. Connect the electrical connector.
  5. Connect negative battery cable.
