VALVE, Manifold Tuning: Installation: 2.7L

Fig 1: Removing/Installing Short Runner Valve
GC0080481Courtesy of CHRYSLER LLC
  1. Install the Manifold Tuning Valve.
  2. Install the 2 mounting bolts.
  3. Tighten bolts to 2.8 N.m (25 in. lbs.).

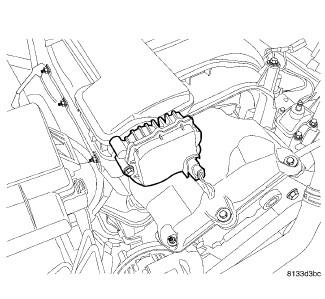

    Fig 2: Manifold Tuning Valve
    GC0080480Courtesy of CHRYSLER LLC
  4. Connect the electrical connector and lock connector.
  5. Connect negative battery cable.
