Throttle Body: Installation: 2.7L

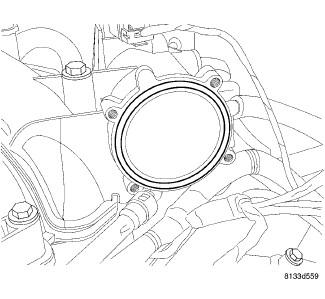

Fig 1: Throttle Body Mating Surfaces

Courtesy of CHRYSLER LLC

NOTE: Make sure the intake gasket is clean and free of debris. Inspect the intake gasket for damage. Replace as necessary.

Install throttle body gasket.

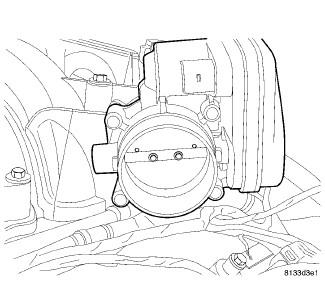

Fig 2: Identifying Throttle Body
Courtesy of CHRYSLER LLC

CAUTION: DO NOT OVER TORQUE. Over tightening can cause damage to the throttle body, gaskets, bolts and/or the intake manifold.
Install throttle body, and bolts to intake manifold.

Fig 3: Throttle Body Mandatory Torque Sequence
Courtesy of CHRYSLER LLC

CAUTION: The throttle body must be torqued in a mandatory torque sequence. Tighten in a criss-cross pattern to specification.
Tighten the bolts in a mandatory torque criss-cross pattern sequence to 5.5 N.m (50 in. lbs.).

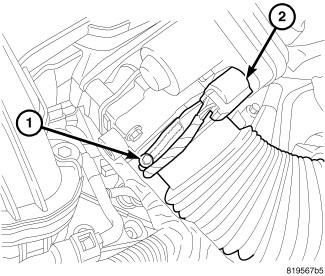

Fig 4: Throttle Body Electrical Connector And Air Intake Hose Clamp
Courtesy of CHRYSLER LLC
Connect electrical connector (2) to throttle body.
Install throttle body air intake hose and tighten clamp (1).
Connect negative battery cable.
Use a scan tool and perform the ETC RELEARN function.
