Generator - 3.3/3.8L

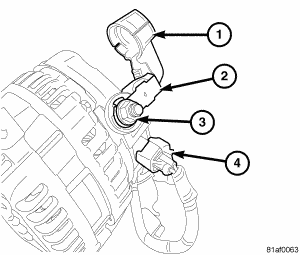

Fig 1: Alternator Electrical Connection
GC0072838Courtesy of CHRYSLER LLC
  1. Disconnect and isolate negative battery cable at battery.
  2. Remove generator drive belt. Refer to REMOVAL .
  3. Unsnap plastic protective cover (1) from B+ mounting stud.
  4. Remove B+ terminal mounting nut (3) and B+ terminal (2) at top of generator.
  5. Disconnect field wire electrical connector (4) by pushing on connector tab.

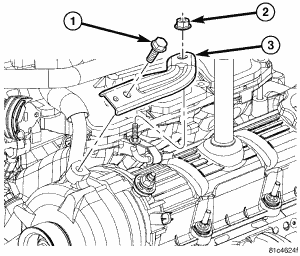

    Fig 2: 3.3, 3.8L Alternator Bracket
    GC0073078Courtesy of CHRYSLER LLC
  6. Remove alternator bracket bolt (1).
  7. Remove alternator bracket nut (2) and bracket (3).

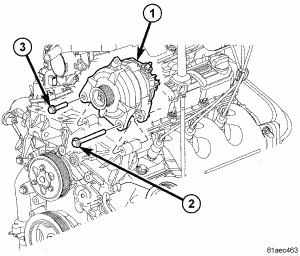

    Fig 3: Generator 3.3L & 3.8L
    GC0073079Courtesy of CHRYSLER LLC
  8. Remove generator mounting bolts (2) and (3).
  9. Remove generator (1) from vehicle.
