Generator - 2.8L Diesel

Fig 1: Alternator Electrical Connection

Courtesy of CHRYSLER LLC

Disconnect and isolate negative battery cable at battery.
Remove generator drive belt. Refer to REMOVAL .
Unsnap plastic protective cover (1) from B+ mounting stud.
Remove B+ terminal mounting nut (3) and B+ terminal (2) at top of generator.
Disconnect field wire electrical connector (4) by pushing on connector tab.

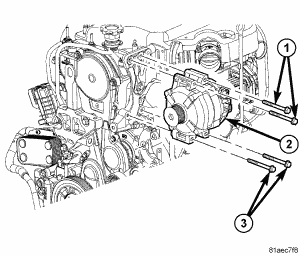

Fig 2: Generator 2.8L
Courtesy of CHRYSLER LLC
Remove generator mounting bolts (1) and (3).
Remove generator (2) from vehicle.
