All-Speed Traction Control

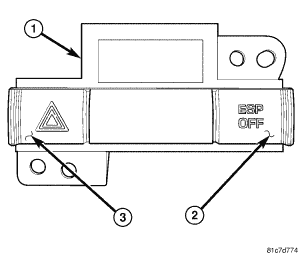

Fig 1: Instrument Panel Switch Pod
GC0072981Courtesy of CHRYSLER LLC

The traction control system (TCS) is an all-speed traction control. All-Speed Traction Control enhances mobility and prevents wheel slip when accelerating on slippery surfaces. It also provides a measure of directional stability control. Using the wheel-speed sensors, it can detect excessive yaw and help keep the car on the intended course, as for instance, when accelerating around a curve.

All-Speed Traction Control is effective up to 85 mph (137 km/h).

The traction control system may be turned off or on by depressing the ESP Off switch button (2) located in the instrument panel switch pod (1) located in center of the instrument panel.
