Controller-Occupant Restraint

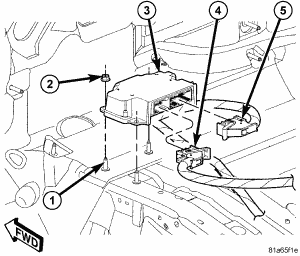

Fig 1: Removing/Installing ORC
GC0059194Courtesy of CHRYSLER LLC
  1. Open hood.
  2. Disconnect and isolate the battery negative cable.
    WARNING: Wait two minutes for the system reserve capacitor to discharge before servicing any airbag components. Failure to do this may result in serious or fatal injury.
  3. Remove the center console. Refer to REMOVAL .
  4. Remove the ORC mounting nuts (2).
  5. Disconnect the two ORC connectors (4 and 5).
  6. Remove ORC (3) from vehicle.
