Cap - Fuel Filler: Description

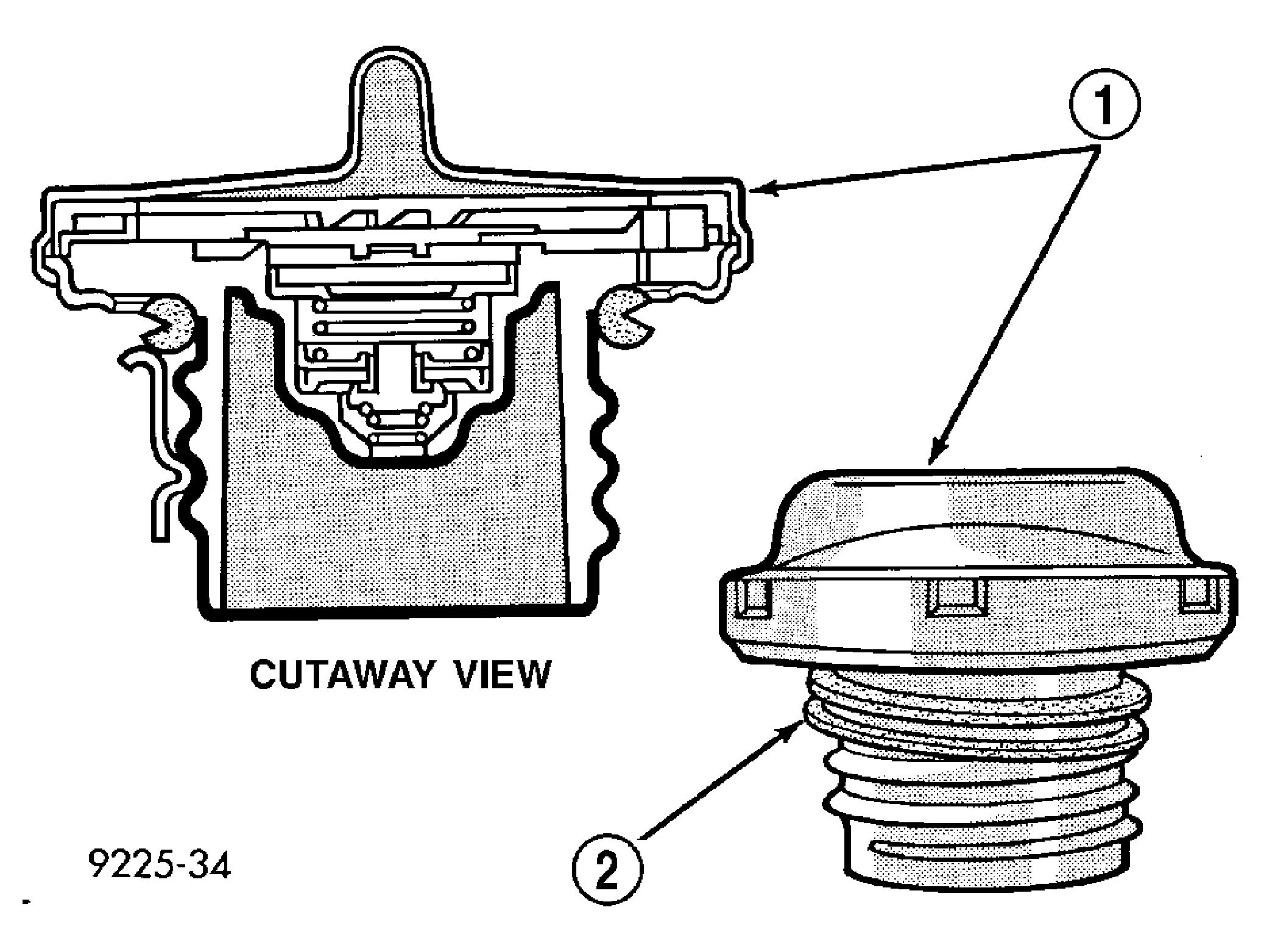

Fig 1: Pressure Vacuum Filler Cap
GC0036052Courtesy of CHRYSLER LLC
1 - FUEL FILLER TUBE CAP
2 - GASKET

The plastic fuel tank filler tube cap is threaded onto the end of the fuel fill tube. Models are equipped with a 1/4 turn non-locking cap.
