Tandem Fuel Pump: Installation

Fig 1: View Of Fuel Pump & Gasket
GC0060551Courtesy of CHRYSLER LLC
  1. Place new gasket (3) on pump (1).
  2. Align pump drive (2) on pump.
    Fig 2: Installing Fuel Pump On Camshaft Slot
    GC0060552Courtesy of CHRYSLER LLC
  3. Insert pump drive into slot on camshaft (1).

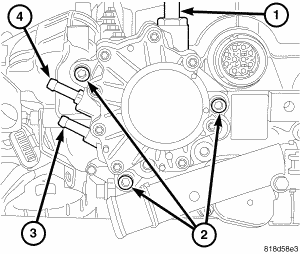

    Fig 3: View Of Fuel Pump & Retainer Bolts
    GC0060553Courtesy of CHRYSLER LLC
  4. Install pump retaining bolts (2) and tighten.
  5. Install fuel feed line (4).
  6. Install fuel return line (3).
