Tandem Fuel Pump: Removal

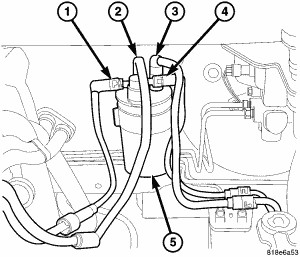

Fig 1: View Of Fuel Filter & attachments
GC0060549Courtesy of CHRYSLER LLC
  1. Remove Fuel feed line at filter (2).
  2. Remove fuel return line at filter (1).
  3. Perform fuel draining procedure. See STANDARD PROCEDURE .

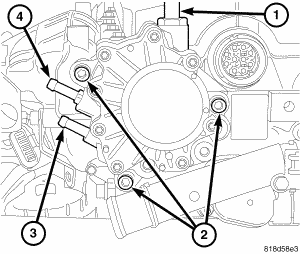

    Fig 2: View Of Fuel Pump
    GC0060550Courtesy of CHRYSLER LLC
  4. Remove vacuum line (1).
  5. Remove fuel feed line (4).
  6. Remove fuel return line (3).
  7. Remove retaining bolts (2) and remove pump.
