Level Check

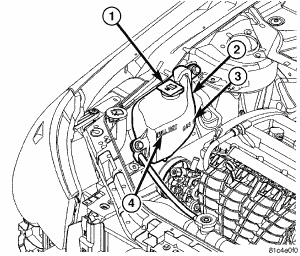

Fig 1: 2.0L/2.4L COOLANT FILL

Courtesy of CHRYSLER LLC

1 - COOLANT RECOVERY CONTAINER CAP

2 - COOLANT RECOVERY CONTAINER

3 - MIN FILL LINE

4 - MAX FILL LINE

NOTE: Do not remove pressure cap for routine coolant level inspections.

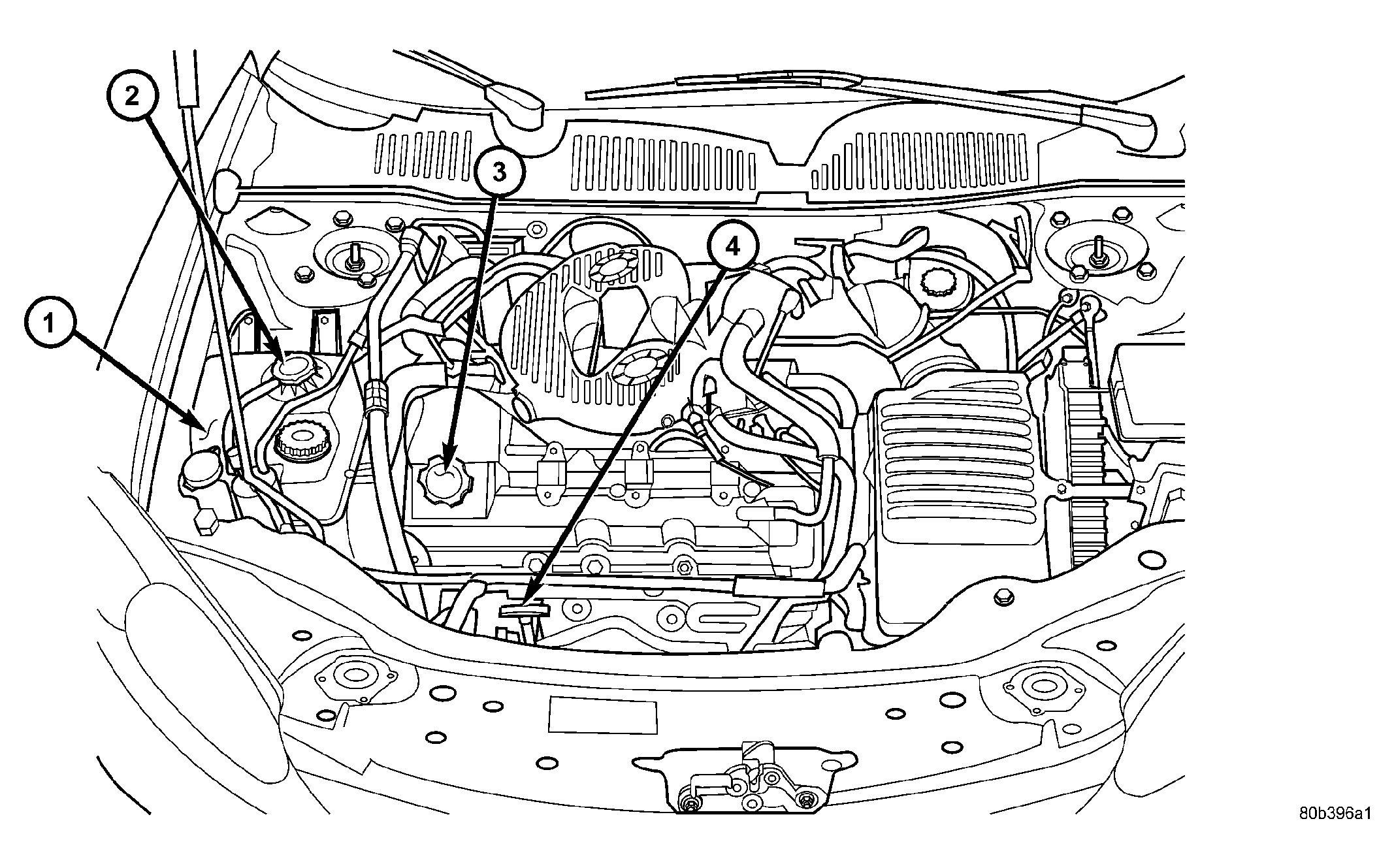

Fig 2: Fluid Level Check - 2.7L

Courtesy of CHRYSLER LLC

1 - COOLANT PRESSURE CONTAINER

2 - COOLANT PRESSURE CAP

3 - ENGINE OIL FILL

4 - ENGINE OIL DIPSTICK

The coolant bottle provides a quick visual method for determining the coolant level without removing the pressure cap. With the engine cold and not running , simply observe the level of the coolant in the coolant recovery container (2.4L) or the coolant pressure container (2.7L/3.5L/2.0L Diesel).

The level should be between the MIN and MAX marks.
