Pressure System

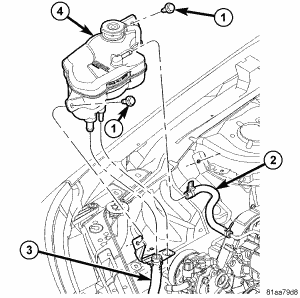

Fig 1: View Of Coolant Recovery Container - Pressure System
GC0058752Courtesy of CHRYSLER LLC

The coolant pressure container consists of a pressure chamber and an overflow chamber. The coolant pressure container is mounted in the right side engine compartment. An overflow hose connects the pressure chamber to the overflow chamber.

NOTE: Coolant will normally be in the pressure chamber side of the coolant bottle. The overflow chamber should normally be empty
