Sensor - Map: Removal: 2.7L

Fig 1: Locating MAP Sensor

Courtesy of CHRYSLER LLC

MAP sensor location.

1. Disconnect and isolate the negative battery cable.

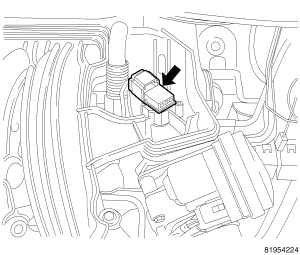

   Fig 2: Identifying MAP Sensor Electrical Connector

   Courtesy of CHRYSLER LLC
2. Disconnect the electrical connector from the MAP sensor.

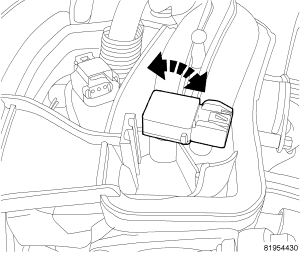

   Fig 3: Turning MAP Sensor To Remove/Install

   Courtesy of CHRYSLER LLC
3. Turn sensor counterclockwise.
   Fig 4: Lifting Sensor To Remove

   Courtesy of CHRYSLER LLC
4. Lift sensor to remove.
