Starter Connector End View

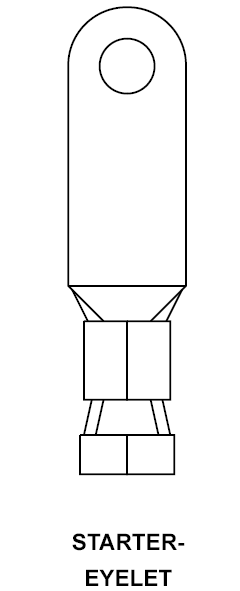

STARTER-EYELET - 1-WAY

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	A8 4RD	FUSED B(+)
1	A802 8LB	FUSED B(+)
