Fuel Injector 2 Connector End View

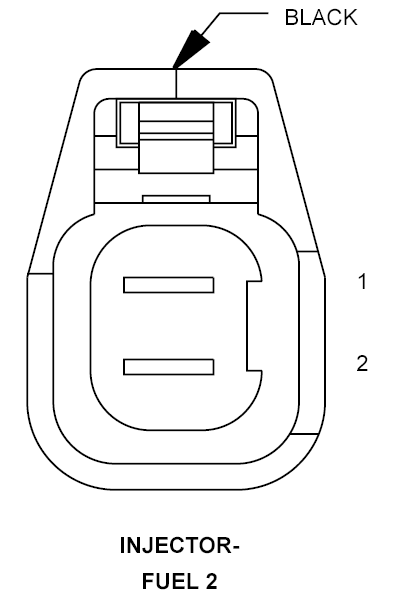

INJECTOR-FUEL 2 - BLACK 2-WAY

GCS780127Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 K344 16BR/GY ASD RELAY OUTPUT (3.8L)
1 F343 16PK/BR ASD RELAY OUTPUT (4.0L)
2 K12 16BR/DB INJECTOR 2 CONTROL
