Ambient Air Temperature Sensor Connector End View
Ambient Air Temperature Sensor Connector End View

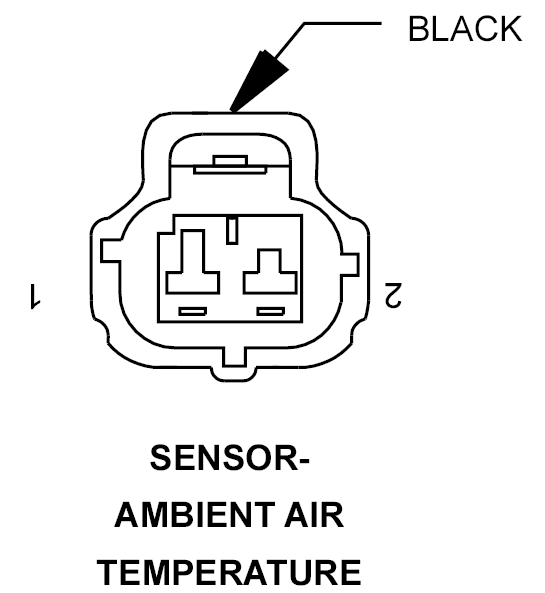

SENSOR-AMBIENT AIR TEMPERATURE - BLACK 2-WAY
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
G31 20OR/VT
AAT SIGNAL
2
C918 20BK/LB
SENSOR GROUND
