Element-Air Cleaner: Installation: Installation
WARNING: This page is about a different variant/trim than selected.

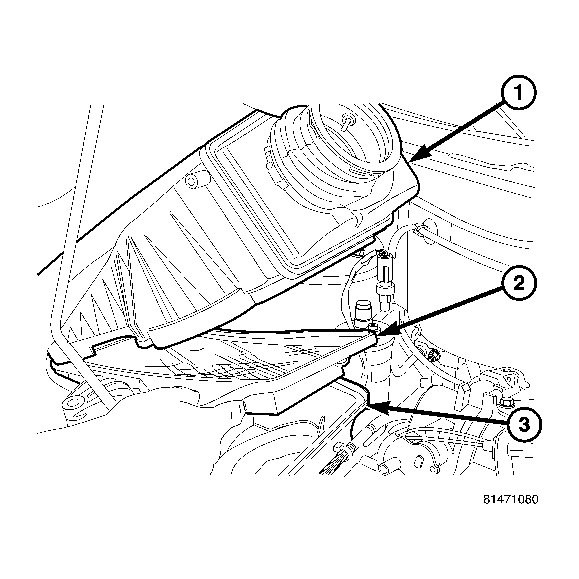

| 1 - AIR CLEANER COVER |
| 2 - AIR CLEANER ELEMENT |
| 3 - AIR CLEANER HOUSING |
- Install the air filter element into air box. See Fig 1.
- Move cover so that the tabs insert into the air cleaner housing.

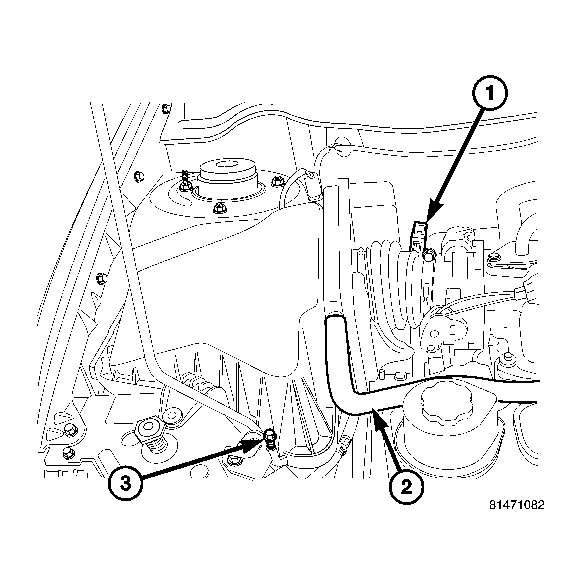

1 - INTAKE AIR TEMPERATURE SENSOR 2 - CRANK CASE VENTILATION HOSE 3 - BOLT - Position the cover down over the element and lower housing and tighten the fasteners. See Fig 2.
- Connect the air inlet tube to the throttle body and tighten the clamp.
- Connect the IAT sensor. See Fig 2.
- Connect the CCV hose. See Fig 2.
