Home >> Chrysler >> 2008 >> Pacifica Limited, FWD >> Repair and Diagnosis >> Engine Performance >> System >> DTCS P2111 To P2181 >> P2135-Throttle Position Sensor 1/2 Correlation - 4.0L >> Circuit Schematic

Circuit Schematic

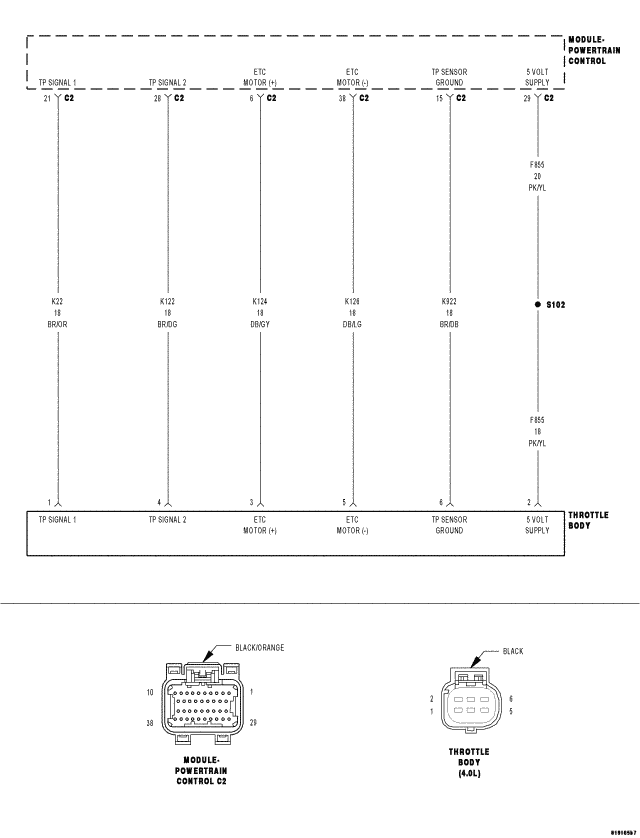

Fig 1: Throttle Body Circuit Schematic - 4.0L

GC0049434

Courtesy of CHRYSLER LLC
