Relay-Rear Window Defogger

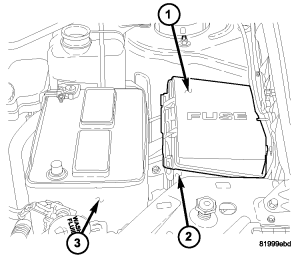

Fig 1: Integrated Power Module (IPM), Cover And Battery
GC0048711Courtesy of CHRYSLER LLC
  1. Disconnect and isolate the negative battery cable.
  2. Remove the cover (1) from the integrated power module (IPM) (2) located in the engine compartment near the battery (3).
    NOTE: Refer to the fuse and relay layout map on the inside of the IPM cover for EBL relay location.
  3. Remove the EBL relay from the IPM.
