Intermediate Shaft

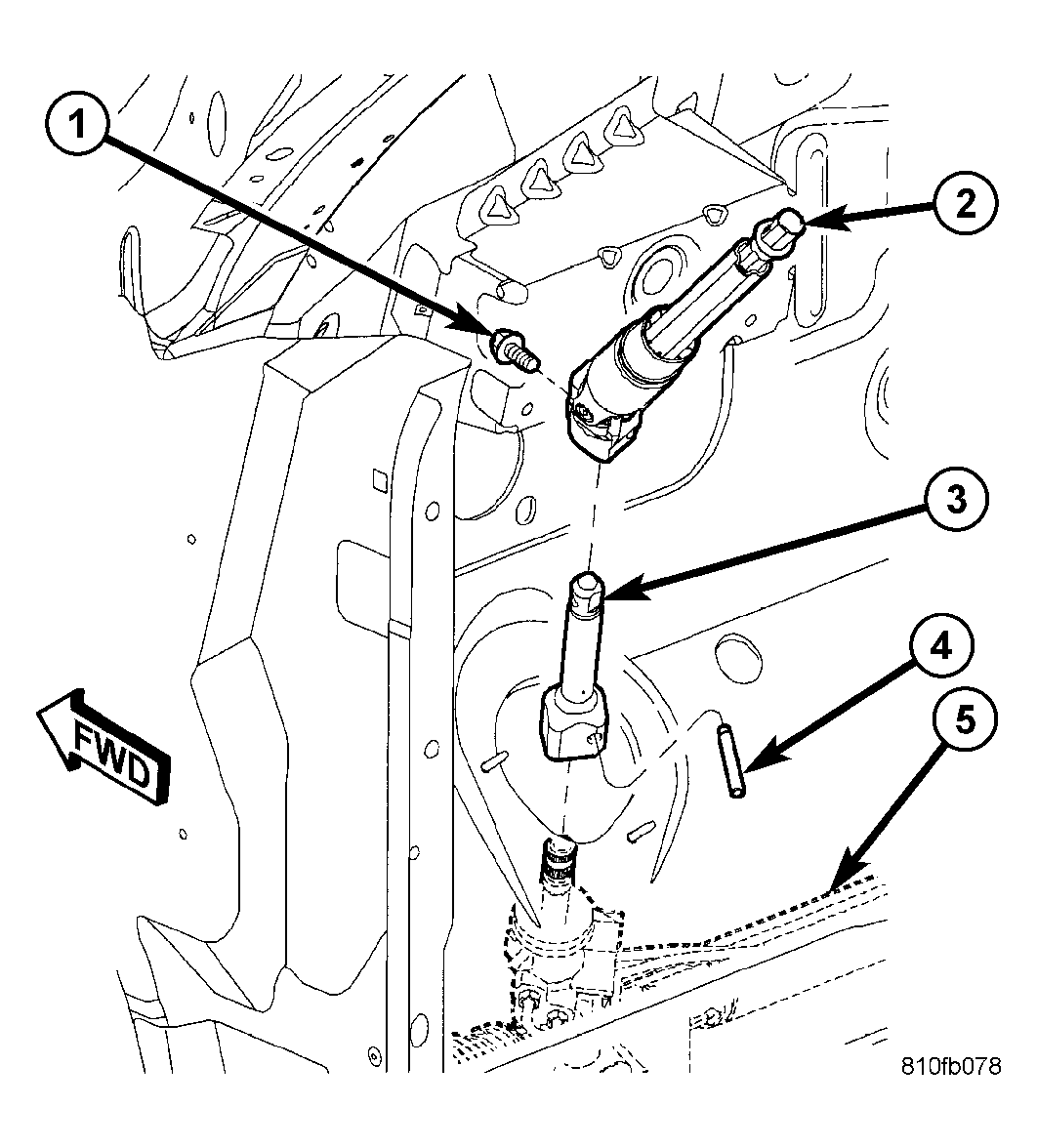

| 1 - PINCH BOLT |
| 2 - INTERMEDIATE SHAFT |
| 3 - INTERMEDIATE SHAFT EXTENSION |
| 4 - ROLL PIN |
| 5 - POWER STEERING GEAR |
- Match flats inside intermediate shaft (2) with that on intermediate shaft extension (3), then slide intermediate shaft onto extension.
- Install pinch bolt (1) fastening intermediate shaft to intermediate shaft extension. Tighten pinch bolt to 43 N.m (32 ft. lbs.).

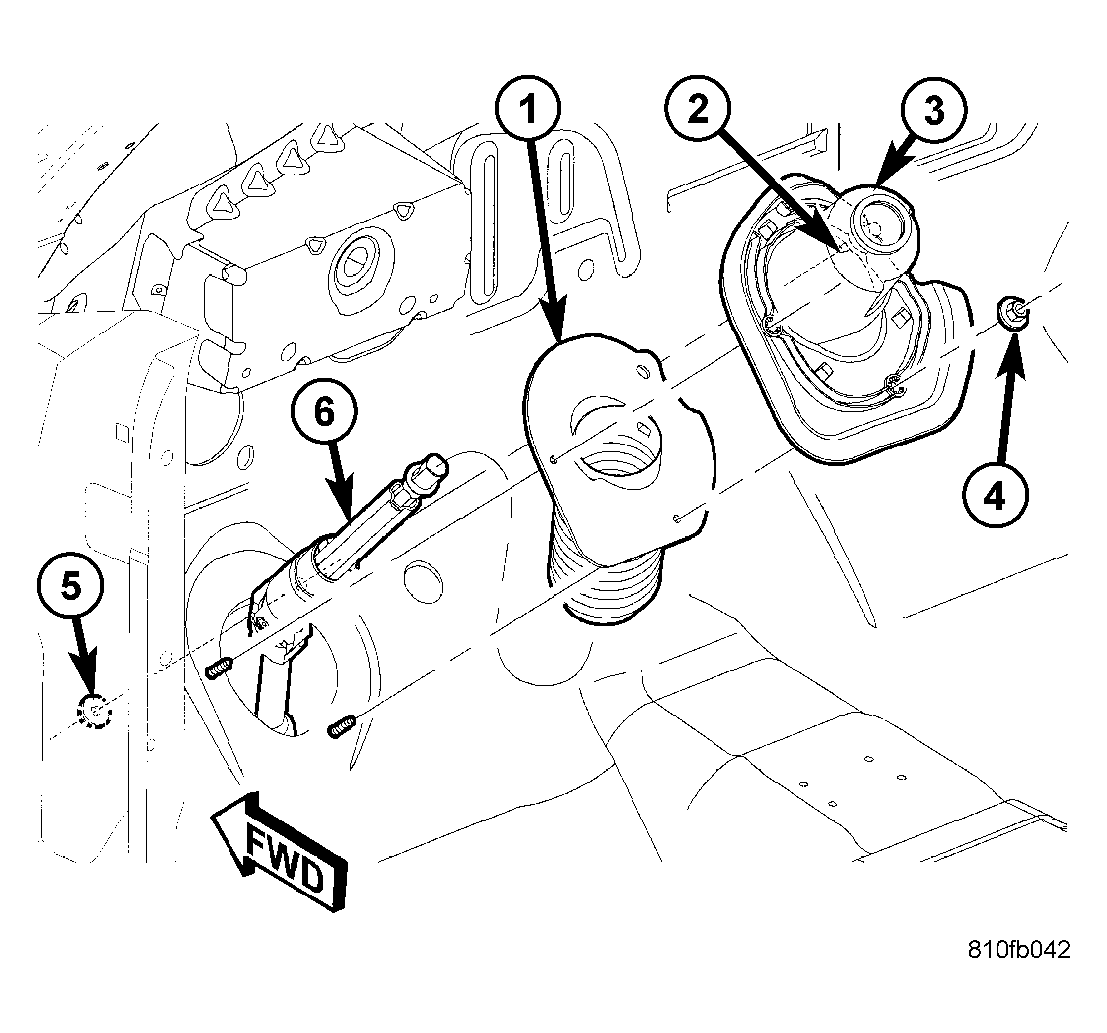

1 - COVER (SHIELD AND SEAL) 2 - LOWER MOUNTING STUD 3 - SILENCER SHELL 4 - UPPER MOUNTING NUT (2) 5 - LOWER MOUNTING NUT 6 - INTERMEDIATE SHAFT - Slide intermediate shaft silencer shell (3) over intermediate shaft (6) and onto studs on dash panel while inserting lower mounting stud though cover and dash panel.
- Install two upper intermediate shaft silencer shell/cover mounting nuts (4). Tighten nuts to 2.8 N.m (25 in. lbs.).
- Raise and support vehicle. Refer to STANDARD PROCEDURE
.
1 - COVER (SHIELD AND SEAL) 2 - LOWER MOUNTING STUD 3 - SILENCER SHELL 4 - UPPER MOUNTING NUT (2) 5 - LOWER MOUNTING NUT 6 - INTERMEDIATE SHAFT - Install lower silencer shell/cover mounting nut (5). Tighten nuts to 2.8 N.m (25 in. lbs.).
- Ensure intermediate shaft cover shield (1) is extended down over top of gear housing closing off shaft area.
- Lower vehicle.
1 - INTERMEDIATE SHAFT 2 - COLUMN MOUNTING BRACKET 3 - COLUMN MOUNTING STUDS 4 - STEERING COLUMN 5 - UPPER MOUNTING NUTS 6 - LOWER MOUNTING NUTS 7 - HAIR PIN 8 - COUPLING PINCH BOLT - Connect steering column coupling to intermediate shaft. See Figure. To do so:
- Match intermediate shaft (1) to coupling pinch loop.
- Install coupling pinch bolt (8). Tighten to 28 N.m (21 ft. lbs.).
- Install hair pin (7) through end of pinch bolt.

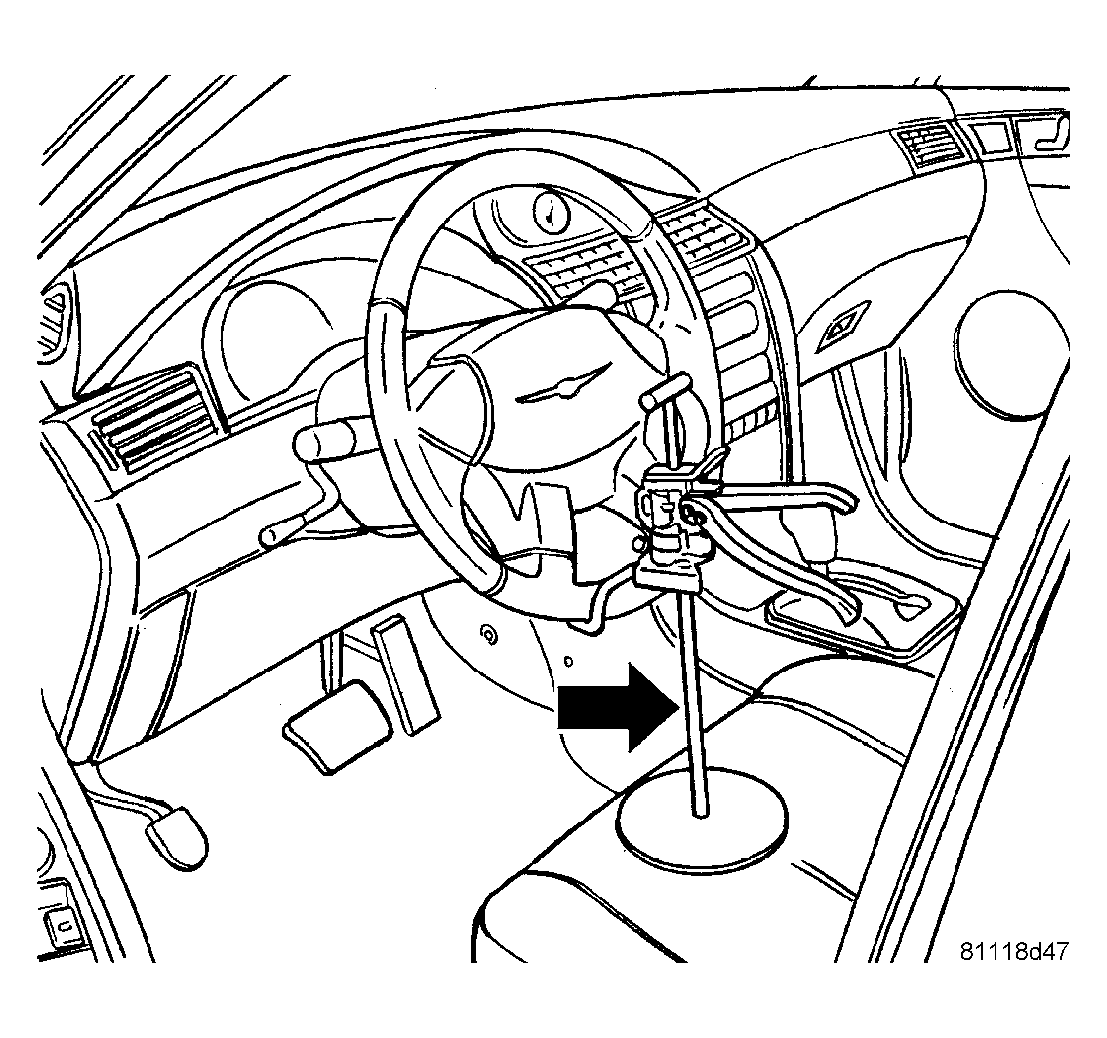

- Remove steering wheel holder.
- Connect battery negative (-) cable to battery post.
- Road test vehicle to ensure proper operation of steering.
